Well Type Industrial Heat Treat Oven , Carbon Steel Tools 25kw Electric Furnace

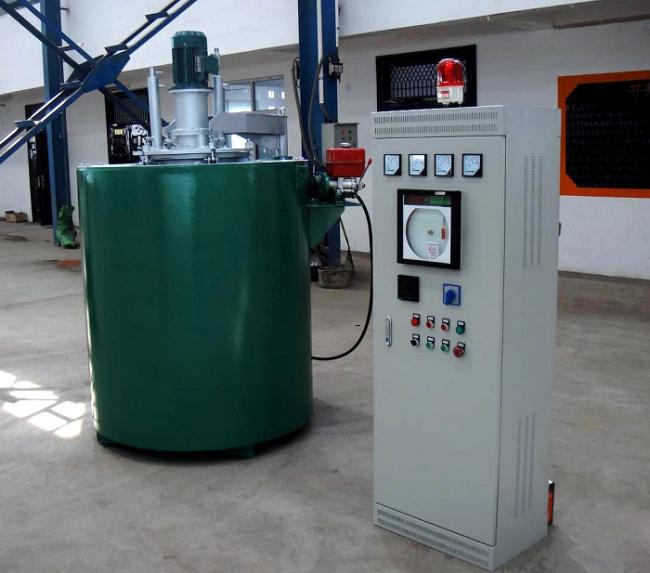

Well Type Gas Carburizing Furnace Heat Treatment Oven For Carbon Steel Tools
Application of gas carburizing furnace
The high temperature controlled gas carburizing furnace, mainly be used for protective atmosphere carburizing, quenching. Suitable for variety of workpieces carburizing, carbonitriding infiltration , multicomponent permeation heat treatment process.
Applicable for bright anealing tempering of carbon steel, alloy steel parts and magnetic materials in protective atmosphere, and for bright anealing of small batch of scrolling strips
Parts Description:
1), Shell:made by steel plate and structural steel.

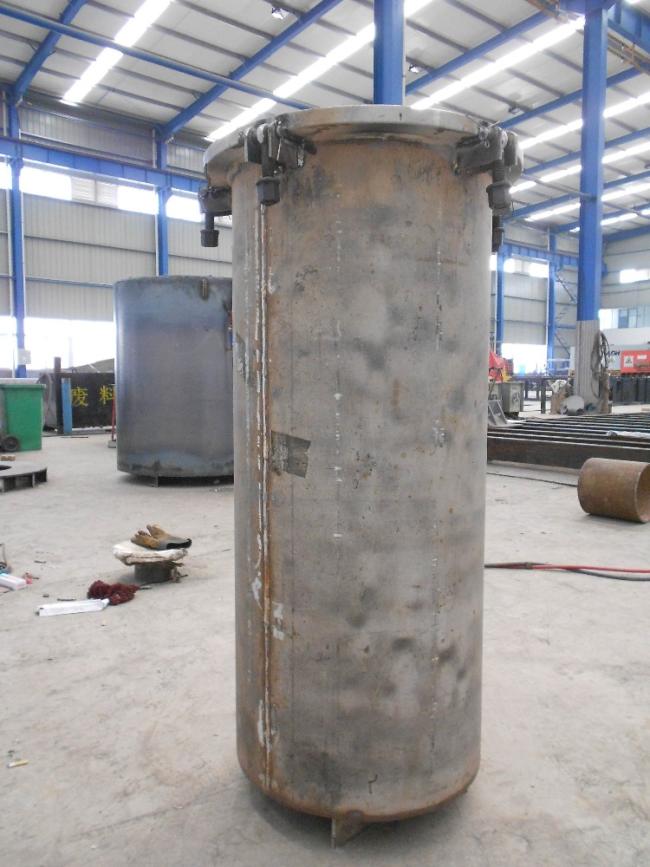

2), Inside of furnace cover: made by stainless steel plate.
3), Burner liner: using the super light and energy conservation micropore fire-resistant heat reserving brick
4), Aluminum silicate fiber at between burner liner and shell, and also fill full of thermo-insulating power in gap.
5), Resistance wire: use the 0Cr25Al5 high resistor alloy wire installed upon brick.
6), Furnace cover: use the manual lever lifter or motor-driven or hydraulic.

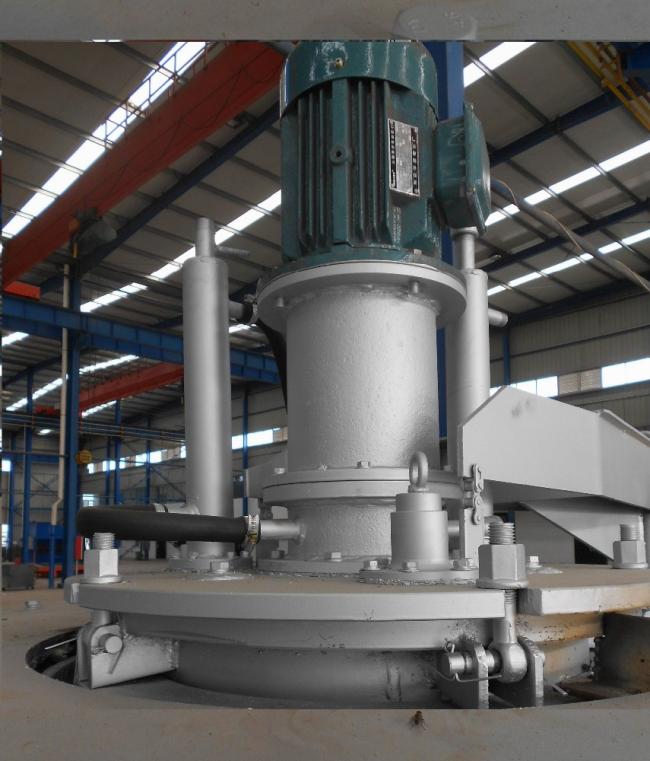

7) , We have installed fan which made by a heat-resistance stainless steel shaft and fan blade for uniform heating the work-piece
8), Limit switch installed near the lifter device for safety operation.
Standard models
| Name | Model |
Rated Power |
Rated Voltage |
Rated Temp. |
Effective Size (mm) |
Remarks |
|
Well- type Gas Carburizing Furnace |
RQ3-25-9 | 25 kw | 3P. 380 V | 950.C | Φ300*450 |
Applicable for carburizing of steel part, protective atmosphere quenching and other heat treatment |
| RQ3-35-9 | 35 kw | 3P. 380 V | 950.C | Φ300*600 | ||
| RQ3-60-9 | 60 kw | 3P. 380 V | 950.C | Φ450*600 | ||
| RQ3-75-9 | 75 kw | 3P. 380 V | 950.C | Φ450*900 | ||
| RQ3-90-9 | 90 kw | 3P. 380 V | 950.C | Φ600*900 | ||
| RQ3-105-9 | 105kw | 3P. 380 V | 950.C | Φ600*1200 |
Characteristic of this carburizing furnace :
1) Rational structure, uniform furnace temperature, small upper & lower temperature difference in working zone, especially applicable for heating and heat treatment for long axial work-piece.
2) Adopt energy-saving furnace lining, fast temperature rise, low empty furnace consumption, save more than 20% of energy compare with old product.
3) The control system can be equipped with normal control instrument or instrument with micro-processor program control according to actual need.
4) When needed during process, protective atmosphere can be fed into the furnace to realize little-oxidizing heating.
5) Each product is installed with safety interlock and over-temperature device to provide reliable and safe operation and use.
Packing & Shipping
Small heat treatment furnace will be packed by standard plywood case for exporting ;
Suppose your order is of big volume or 1pc furnace with large capacity, the products will be delivered by 20GP or 40GP container. Top open container is optional as well.
Warranty
- Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost.
- This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.
- Replacement will be shipped to you after photo or other evidence are provided and investigated
