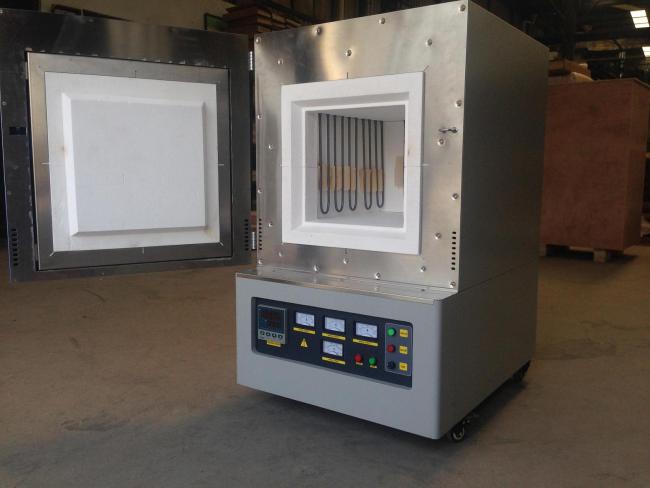

36L 1700 C Electric High Temperature Muffle Furnace For New Material Research
1700degree Celsius High Temperature Electric Muffle Furnace
36L New Material Research
High Temperature Electric Muffle Furnace Main Function & Features:
1) 1700C electric muffle furnace adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; Chamber surface coated with imported 1700 degree high temperature resistant heat insulation coating, it can improve the reflectivity and the heat efficiency of furnace, and prolong the service life of furnace. So this furnace much more energy saving than the furnace use common fiber materials.
2) Muffle furnace with high quality MoSi2 rod as heating elements, high heating efficiency,greatly improving the service life.
3) Muffle furnace with assembling structure, through strict computation, durable to use, does not collapse; equipped with breathing holes, can reduce shrinkage of furnace chamber and prolong the service life.
4) Side open type furnace door, open the door power will be cut off automatically.
Technical data of high temperature electric muffle furnace
| Items | Specification |
| Product | SP-SP1700B-36L high temeprature electric muffle furnace |
| Useful chamber size | 300*300*400mm(36L W * H* D) |
| Max Temp | 1700℃ ( < 3 hrs) |
| Working Temp | 0-1600℃ (adjustable, for long time ) |
| Temp accuracy | ±1 ℃ |
| Heating rate | 1-20℃/min (adjustable,advise less than 15℃/min) |
| Heating Element | Resistance wire |
| Furnace liner | Light durable ceramic fiber plate |
| Rated Power: | 16KW |
| Furnace shell | Double shells with fan cooling |
| Temp. measurement | By B type thermocouple |
| Temp. Control | 30 segments programmable and PID auto control |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Furnace surface temperature | ≤55℃ |
| Working Voltage | AC,3-phase ,380V ,50/ 60HZ |
| Optional part | Can be connected with computer if customer need |
| Freebies | 1.oven glove 1 set ; 2. Pliers 1pc |
The muffle furnaces are the right choice for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle furnaces come equipped with either a flap door or lift door at no extra charge.
- Tmax 1700 °C
- Heating from two sides by ceramic heating plates (heating from three sides for large muffle furnaces
- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
- Only fiber materials are used which are not classified as carcinogenic according
- Dual shell housing for low external temperatures and high stability
- Adjustable air inlet integrated in door
- Exhaust air outlet in rear wall of furnace(alternal)
- Solid state relays provide for low-noise operation
- Defined application within the constraints of the operating instructions
Stanard models of SUPER company 1700C muffle furnace:
| Model | Max. Temp. | Chamber size(WxHxD mm) | Working voltage and power |
| SP-1700B-1L | 1700℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V/1.5KW |
| SP-1700B-3.4L | 1700℃ | 150x150x150mm (6"x6"x6") | AC,1-phase,220V,3.5KW |
| SP-1700B-4.5L | 1700℃ | 150x150x200mm (6"x6"x8") | AC,1-phase,220V.4.5KW |
| SP-1700B-8L | 1700℃ | 200x200x200mm (8"x8"x8") | AC,1-phase,220V,6KW |
| SP-1700B-12L | 1700℃ | 200x200x300mm (8"x8"x12") | AC,1-phase,220V,8KW |
| SP-1700B-18.8L | 1700℃ | 250x250x300mm (10"x10"x12") | AC,3-phase,220V,11KW |
| SP-1700B-36L | 1700℃ | 300x300x400mm (12"x12"x16") | AC,3-phase,380V,16KW |
| SP-1700B-49L | 1700℃ | 350x350x400mm (14"x14"x16") | AC,3-phase,380V,21KW |
| SP-1700B-64L | 1700℃ | 400x400x400mm (16"x16"x16") | AC,3-phase,380V24KW |
| SP-1700B-125L | 1700℃ | 500x500x500mm (20"x20"x20") | AC,3-phase,380V,36KW |
| SP-1700B-216L | 1700℃ | 600x600x600mm (24"x24"x24") | AC,3-phase,380V,48KW |
About Product
1. Which procedure to secure your Quality?
Our company has own research & development and production base, the products have been calibrate by central laboratory professionals before before they leaves the factory, ensure the accuracy of test results and authority.
2. How about your company product after-sales service system?
Product after-sale guarantee period is 12 months,and we can provide lifetime repair guarantee.We have agents in some countries,they can provide door-to-door service.If there is no agent,our professional pre-sales and after-sales department can reply you within 24 hours for any technical problems.
3. Products standards?
Our instruments adopts ISO, ASTM, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE and other international testing standards.
4. Our country's power supply and plug are different, how do you solve it?
We can according to different countries and the power plug, equipped with transformer and plug that in accordance with your local requirement.
5. Payment methods?
T/T, L/C, D/P and so on
6. Packing method?
Standard export wooden box packaging
7. Main export market?
Now our products have been exported to North America, Europe, southeast Asia, South America and other countries.
10. How to ensure the customer standard use the instrument?
We can provide each product related video showing how to install and operate.If you have specific needs, we also can arrange engineer to the customer's company for equipment operation training.
