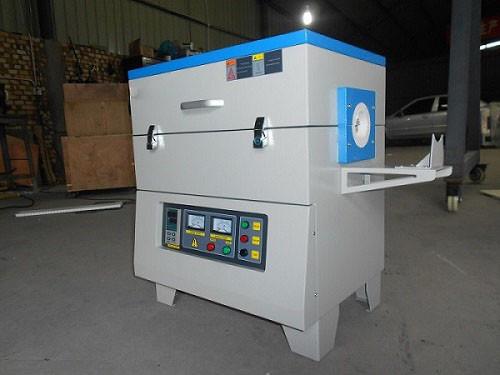

1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere 50x300mm
1200C Electric Tube Furnace Vacuum Pump Quartz Tube Argon Atmosphere
1200C electric tube furnace spefication:
a) 1200C high efficiency electric tube furnace,heating element used resistance wire. When tube furnace heating, can ensure uniform temperature in the furnace and strong and durable.
b) Tube furnace chamber of the use of advanced light weight aluminum oxide material molding, traditional muffle furnace compared the weight, reduce 40% . Heat preservation effect is good,temperature increase speed increased a times, save energy. Furnace service life by four times.
c) Use double deck ventilation cooling structure, muffle furnace work in high temperature, and the furnace shell surface keep low temperature, avoid scald the operating personnel, safety is greatly increased.
d) The 30 segments programmable intelligent digital temperature controller control temperature, high degree of automation, convenient operation.
e) It can be installed computer communication module and RS485 communication interface, to realize the remote control.
Technical parameter of electric tube furnace :
| Product name and model | 1200℃ high efficiency vacuum electric tube furnace |
| Heating tube size(OD×L) | Dia50x300mm(heating length) |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1200°C working time ( < 3 hours) |
| Working temperature | 400-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | K type |
| Heating element | SiC rob |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Rated power | 2KW |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Standard model of SP company electric tube furnace:
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1200T-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1200T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-84 | Φ80x400 mm(3.2"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-104 | Φ100x400 mm(4.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200T-154 | Φ150x400 mm(6.0"x16") | TW-1A;1L/S;120W;110V/220V |
Our advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
Our service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
