Laboratory High Temperature Tube Furnace Atmosphere Protect With Fan Cooling
Atmosphere Protect Laboratory Vacuum Tube Furnace 1700C -0.1MPa
Vacuum tube furnace application:
SP tube muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
High temperature tube furnace used to produce a large number of nano carbon materials, such as, Carbon nanotube powder, carbon nano tube film and directional carbon nano tubes, etc. It can also be used vacuum sintering, atmosphere protective sintering, nano material production,
Vacuum tube furnace specification :
1. chamber size :from OD40*300mm(L) to OD200*1000mm;The OD of furnace tube for 1700C furnace can only up to 100mm.
2. operation temperature:100C to 1600.C .Max temperature : 1700.C
3. thermal insulation material: 1800ceramic fiber board which is made of high purity alumina fibers and alumina powder to be formed and fired in special equipment.
4. heating element :Resistance wire for 1200.C furnace ,SiC rod for 1400.C furnace ;MoSi2 rod heating elment for 1500-1800.C furnace .
5. Temperature measuring instrument :K type thermocouple for 1200.C furnace; S type thermocouple for 1400.C furnace ; B type thermocouple for 1500-1700.C furnace .
1700C 60*300mm Vacuum tube furnace main technical parameter :
| Product name and model | SP-1700T-63 vacuum tube furnace |
| Heating tube size(OD×L) | Dia60x300mm(2.4"x12") |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1700°C working time ( < 3 hours) |
| Working temperature | 400-1600°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | B type |
| Heating element | MoSi2 rod |
| Ultimate vacuum | -0.1MPa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Rated power | 3KW |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Stanard model of SP 1200C vacuum tube furnace
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1700T-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1700T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-84 | Φ80x400 mm(3.2"x16") | TW-1A;1L/S;120W;110V/220V | |
| SP-1700T-104 | Φ100x400 mm(4.0"x16") | TW-1A;1L/S;120W;110V/220V |
Welcome to send email to us if you are interest in our furnace , we are ready to supply service to you .

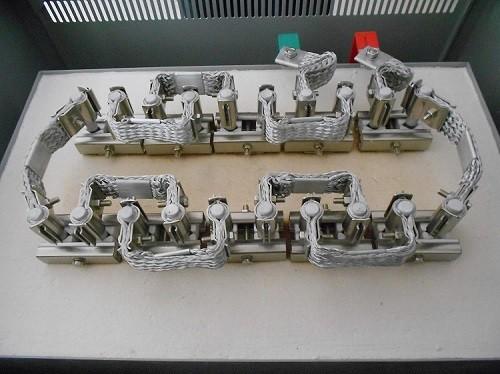

Furnace top ( MoSi2 rod connecting)
