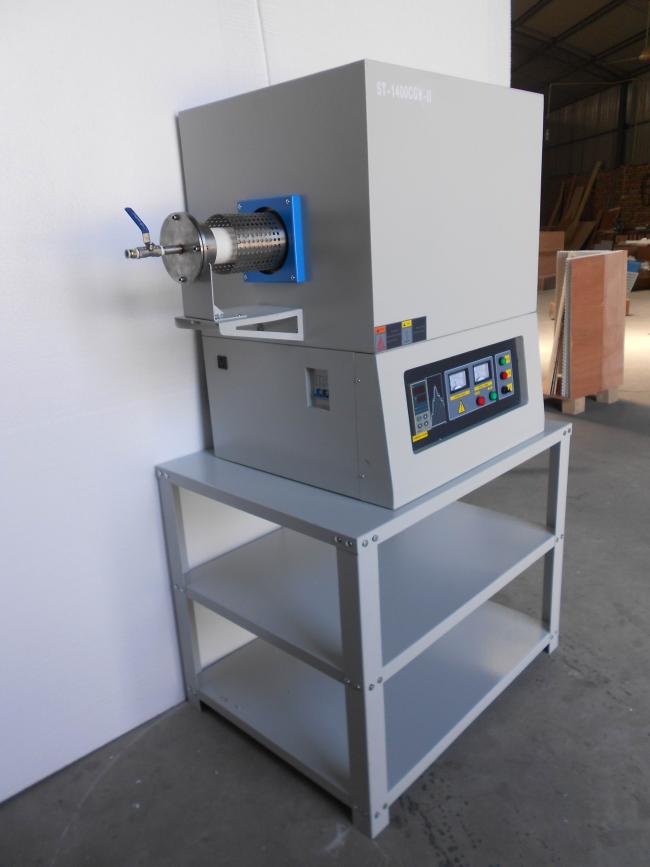

Desktop 1700C High Temperature Tube Furnace University Heating For Chemical Analysis
Desktop 1700C Electric Tube Muffle Furnace Lab University Heating
1700C Desktop Electric tube muffle application:
SP electric tube muffle furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
Electric tube furnace is a precision bench-top furnace using MoSi2 rod as heating elements. It is widely used for materials or chemical lab to sinter all types of new materials samples under vacuum or other gases condition.It is controlled by high precision SCR ( Silicon Controlled Rectifier) digital controller with accuracy +/-1C and 30 segments programmable up to 1700C.
Main technical parameter of 1200C vacuum tube furnace:
| Product name and model | SP-1700T-85 vacuum tube furnace |
| Heating tube size(OD×L) | Dia80x500mm(3.2"*20") |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1700°C working time ( < 3 hours) |
| Working temperature | 400-1600°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | B type |
| Heating element | MoSi2 rod |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
SP-1700T vacuum tube furnace standard model:
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1700T-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1700T-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1700T-84 | Φ80x400 mm(3.2"x16") | TW-1A;1L/S;120W;110V/220V | |
| SP-1700T-104 | Φ100x400 mm(4.0"x16") | TW-1A;1L/S;120W;110V/220V |
Delivery time :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty : One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
