Resistance Wire Rotating Tube Furnace , 2 Hating Zones Ultra High Temperature Furnace
High Temperature 1200Degree Vacuum Rotary Tube Furnace Electric Heating

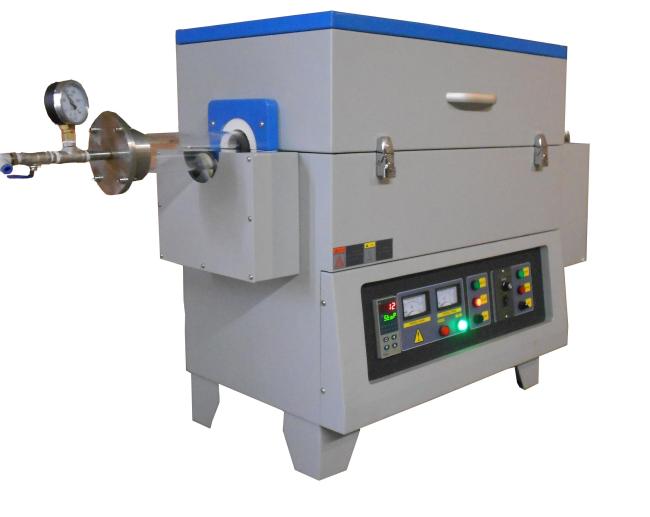

1200C Vacuum Rotary Tube Furnace Brief Introduction:
SP rotary vacuum tube furnace is special designed for calcining inorganic compound with better uniformity, especially excellent for prearing Li-lon battery cathode materials with condutive coating ,It's tube can rotary with 360degree .It can also be produced with 2 hating zones according to customers' requirement .
Main Technical parameter of 1200C rotary tube furnace
| Product name and model | SP-1200RT vacuum rotary tube furnace |
| Furnace tube OD(OD×L) | Dia 40/50/60/80/100mm |
| Tube heating length | 200-800mm |
| Chamber insulation materials | light weight aluminum oxide fiber ceramic |
| Maximum temperature | 1200°C working time ( < 3 hours) |
| Working temperature | 400-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | K type |
| Heating element | Fe-Cr-Al-Mo wire |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shells with fan cooling |
| Tube rotating speed | 3-7RPM variable |
| Tube rotating degree | 360° |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Standard models of SUPER 1200C vacuum rotary tube furnace :
| Model | Heating zone (OD×L mm) | Work power | Vacuum pump specifications |
| SP-1200RT-53 | Φ50x300 mm(2.0"x12") |
AC 1-phase/3-phase 110V-400V 50Hz/60Hz. |
TW-0.5A;0.5L/S;120W;110V/220V |
| SP-1200RT-54 | Φ50x400 mm(2.0"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200RT-55 | Φ50x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200RT-63 | Φ60x300 mm(2.5"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200RT-64 | Φ60x400 mm(2.5"x16") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200RT-65 | Φ60x500 mm(2.0"x20") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200RT-83 | Φ80x300 mm(3.2"x12") | TW-0.5A;0.5L/S;120W;110V/220V | |
| SP-1200RT-84 | Φ80x400 mm(3.2"x16") | TW-1A;1L/S;120W;110V/220V | |
| SP-1200RT-104 | Φ100x400 mm(4.0"x16") | TW-1A;1L/S;120W;110V/220V |
Outstanding features of 1200C rotary tube furnace:
1) Rotary tube to keep uniform heating
2) Variable diameter tube to keep uniform heating
3) Programmable and PID automatic control
4) Dual zone or multra zone temperature control is possible
5) Metal key or touch panel operating interface for your option
6) Inputting protective gas or atmosphere is also possible
1200C Rotary Tube Furnace Main charactertics:
1: 30-50 Segments Programable and PID temperature controllor to make the operation more simple.
2: Furnace Chamber is made of Most advanced Alumina caremic fiber to keep the better heat preservation .
3: Double shell with fan cooling to make the shell temperature close to the room temperature.
4: Intergrated doule circruit to make the furnace more safe , stable and realiable.
5: Humanized design and advaned technics to make the furnace more beautiful and durable.
6: Furnace Tube is made of high purity Quartz or Alumnia and sealed by vacuum flange.
