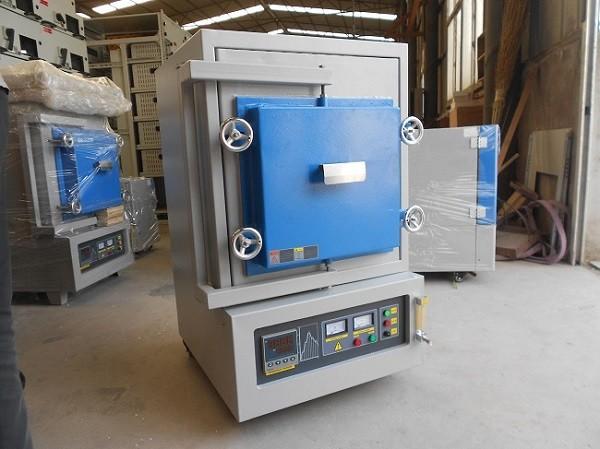

1200C Vacuum Tempering Furnace Energy Saving For Factory New Material Producing
1200C Energy Saving Atmosphere Chamber Furnace For Factory New Material Producing
Brief Introduction of vacuum atmosphere furnace:
SP series atmosphere box furnace can protect materials from oxidation and decarburization with flowing Nitrogen, Argon and other Inert Gas. It's and ideal furnace for sintering, reducing with inert-atmosphere in labs or university,research institution and industrial company.
Features of SUPER vacuum atmosphere furnace
1. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
2. Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
3. Thermocouple installed for immediate use.
4. Temperature control unit can be separated from furnace , and make moving at easy.
5. Vent port installed on the top for gas flow. ( gas outlet)
6. Furnace chamber size can be customized;
7. Small volume, good working performance, nice outlook, less consumption and convenient to move;
8. The door can be designed to up and down type or slid type;
The supply of technical information together with furnace:
1. Furnace operation manual
2. The maintenance solution of the common problems .
3. Electrical control schematic drawing
Technical support and after sale service :
1. Prompt technical consulation and support will be offered .
2. Provide consumable parts with favorable price
3. A whole year warranty and lifetime maintenance .
Technical parameter of 150x150x150mm vacuum atmosphere furnace :
| Product Name | Vacuum atmosphere chamber furnace |
| Model | SP-1200BA-3.4L |
| Max Tempearture | 1200℃(<3 Hours) |
| Working Tempearature | 1100℃(Continuous) |
| Max Vacuum | -0.1MPa |
| Inner chamber Size | 150*150*150mm or customizatable |
| Furnace structure | Double Shells with fan cooling |
| Temperature Controller | 50 Segment programmable and PID auto control |
| Temperature Accuracy | +/-1 °c |
| Heating Elements | Resistance wire |
| Heating Rate | 20°c/Minutes(Suggestion<15°c) |
| Thermocouple | k type |
| Rated Power | 2KW |
| Rater Voltage | AC 380V (50/60hz) |
Stanard models of SUPER company 1200C atmosphere chamber furnace :
| Model | Chamber size(W*H*Dmm) | Max. Temperature |
| SP-1200BA-1L | 100x100x100mm(4"x4"x4") | 1200℃ |
| SP-1200BA-3.4L | 150x150x150mm(6"x6"x6") | 1200℃ |
| SP-1200BA-4.5L | 150x150x200mm(6"x6"x8") | 1200℃ |
| SP-1200BA-8L | 200x200x200mm(8"x8"x8") | 1200℃ |
| SP-1200BA-12L | 200x200x300mm(8"x8"x12") | 1200℃ |
| SP-1200BA-19L | 250x250x300mm(10"x10"x12") | 1200℃ |
| SP-1200BA-36L | 300x300x400mm(12"x12"x16") | 1200℃ |
| SP-1200BA-49L | 350x350x400mm(14"x14"x16") | 1200℃ |
| SP-1200BA-64L | 400x400x400mm(16”x16”x16”) | 1200℃ |
| SP-1200BA-125L | 500x500x500mm(20”x20”x20”) | 1200℃ |
| SP-1200BA-216L | 600x600x600mm(24"x24"x24") | 1200℃ |
Special requirement for this furnace is also available .
More reasons to choose our company :
1. Punctual: We are a manufacturer. It ensures we have the ability to carry out the production schedule for punctual delivery.
2. Point to point service: There is one sales representative who will serve you from inquiry to products shipped out. During the process,you just need to discuss with him or her for all the problems and the way saves much time.
3. Strict QC: For each order,strict inspection will be carried out by the QC department before shipping.The bad quality and situation will be avoided within door.
4. Stable suppliers: We have worked with many accessory suppliers for many years,so we can get cheaper accessories in good quality,and better price can be provided.
5. Smooth shipping: We have expected shipping department and forwarder,so we can promise faster delivery and made the goods well protected.
6. Customers all over the world: Enough experience in foreign trade. We have many stable customers from USA, UK, Russia, Korea, Southeast Asia, Middle East, etc.
7. Fast reply: Our team will respond your requests within 8-working-hour.
