Experimental Furnace Mosi2 Electric Rod Heater , 1700C Industry 110v Heating Element
Experimental Furnace Mosi2 Heater Rod Heating Elements 1700C

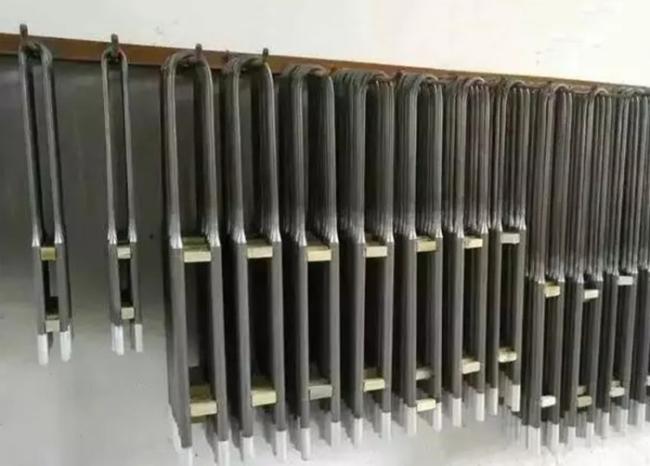

MoSi2 Heater Rod Introduction:
MoSi2 heating elements is a kind of resistance heatingelement made from Molybdenum Disilicide.
It can be used in air and various gases environments. Working temperature of MoSi2 heating element is 1300C to 1800C. It has the characteristics of high temperature resistance, oxidation resistance, corrosion resistance, heating fast, long service life, high temperature low distortion, easy installation and maintenance, excellent chemical stability, which has been widely used as heaters in high temperature furnaces and kilns of metallurgy, glass, ceramic refractory, crystal electronic device, industrial furnace manufacture and chemical industry field.
Types of MoSi2 Heating Elements
1. According to temperature: 1700C and 1800C
2. According to Shape: U, W, I, UL, WL, Spiral types
It must be pointed out is that the MoSi2 heater cannot be used in the temperature between 400℃ to 700 ℃ for long time. Otherwise, the element will be pulverized because of the strong low-temperature oxidation.
Resistance characters of MoSi2 heater
MoSi2 elements have good resistance characteristic, so it is an ideal heating material to replace traditional heating elements.
At room temperature, its resistivity is very low, with the increase of temperature, the resistance increases sharply. The advantages of heating up fast and low power consumption are obvious.
In normal operating circumstances, the resistance of the element is constant, so the old and new components can be mixed.
Physical properties for MoSi2 heater
| Density | Bending Strength | Hardness | Apparent Porosity | Water Absorption | Elongation | Fracture Toughness | Compressive Strength |
| 5.8g/cm3 | 350Mpa | 12.0Gpa | ±2% | 0 | 4% | 4.5Mpa.m1/2 | 650Mpa |
Operation temperature of MoSi2 rod in different atmosphere
| Atmosphere | 1700 Type | 1800 Type |
| Air | 1700 | 1800 |
| N2 | 1600 | 1700 |
| He | 1600 | 1700 |
| -80°C Dry H2 | 1150 | 1150 |
| -20°C Wet H2 | 1450 | 1450 |
| 10%CO2, 50%CO, 15%H2 | 1600 | 1700 |
| 40%CO2, 20%CO | 1400 | 1450 |
| Cracked and Partially Burnt Ammnia | 1400 | 1450 |
Please tell us the following data of molybdenum disilicide MoSi2 rod heating element when send enquiry to us :
d = the diameter of hot zone ?
c = the diameter of cold zone ?
Le = the length of hot zone ?
Lu = the length of cold zone ?
a=Shank spacing
MoSi2 Heater Packaging & Shipping
Package: Package: Synthetic wooden case padded with foams
We also received OEM service; the package can be designed according to your requirements.
Shipping: By vessel or by plane from any Chinese port, Samples can be delivered by International express.
