Tilting Rotary Gas Carburizing Furnace Bright Quenching Resistance Heat
Tilting Rotary Resistance Furnace For Gas Carburizing Bright Quenching RG-60-9
Tilting Rotary Resistance Furnace Application
Rotary carburizing heat treatment furnace is standard energy-saving batch type electric rotary furnace, is mainly used for small metal parts and standard components for hardening, carburizing, carbonitriding, tempering and so on heat treatment.
Tilting Rotary Resistance Furnace Structure
- Rotary carburizing heat treatment resistance furnace shell is welded by sheet steel and sectional steel profile steel.
- Furnace lining adopting the super light weight high strength 0.6/cm³beads energy-saving refractory brick, using the high alumina silicate fiber for heat preservation, super energy-saving structure ,energy-saving effect is excellent.
- Using the Ocr21Ai6Nb resistance wire as the heating element, long service life.
- Electric rotary furnace pot is made of 310S (Cr25Ni20) , one end is supported by bearing support outside the furnace body, using the electromotor and reduction gears to realize the transmission, making the furnace pot to rotate slowly, meanwhile, the workpiece will be heated uniformly as the furnace pot rotation, the workpiece color and lustre is consistent after heat treatment.
- The other end is feed inlet, supported by 2 pieces of idler wheel, when feeding, shake speed transmission on the furnace tilting supporting bracket by hand, the furnace feed inlet will incline upward 20°, convenient for feeding, when discharging, incline downward 40 ° , then workpiece will be poured out.

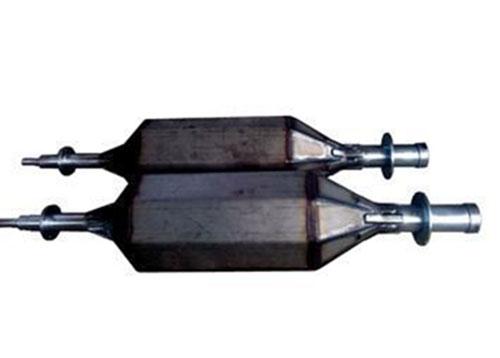

Furnace Pipe
Technical parameters of SP-RG60-9 Rotary Resistance Furnace
| 1. Working power supply | AC/3-phase 4-wire/380-440V/50/60Hz |
| 2. Rated power | 60Kw |
| 3. Rated temperature | 950°C |
| 4. Temperature control way | PID power regulation,instrument of Japan conductive company |
| 5. Temperature accuracy | ±1°C |
| 6. Temperature uniformity | ±5°C |
| 7. Heating element | 0Cr25Al5Fe+Cr resistance wire,spiral |
| 8. Heating element connection | Y |
| 9. Dimensions of Effective work zone | Diameter * length=300*620mm |
| 10. load capacity of 1 batch | 150Kg |
| 11. Operating motor of Furnace chamber | 1 set ,1.5Kw,adjust speed by magnetic |
| 12. Rotating speed | 0.5-8 r/min |
| 13. Tilting motor of furnace body | 0.55KW Hand/electric (all in one) speed reduction unit |
| 14. Max Tilting Angle of furnace body | +/-50 degree |
| 15. No-load power loss | Less than 4KW |
| 16. No-load heating time(Normal Temp:950°C) | About 2.5 hours |
Standard model of SUPER Screw Carburizing Furnace
| Model | Furnace chamber size | Rated power | Rated temperature | Phase | Rated voltage | Load capacity |
| RG-30-9 | D300×L620 mm | 30 kw | 950℃ | 3 | 380-440V | 60KG |
| RG-45-9 | D520×L680 mm | 45 kw | 950℃ | 3 | 380-440V | 100KG |
| RG-60-9 | D600×L750 mm | 60 kw | 950℃ | 3 | 380-440V | 150KG |
| RG-120-9 | D750×L1000 mm | 120 kw | 950℃ | 3 | 380-440V | 300KG |
