Chemical Analysis Vacuum Muffle Furnace Ceramic Insulation Powder Metal Melting
Chemical Analysis 1800degree Ceramic Insulation Muffle Furnace Powder Metal Melting

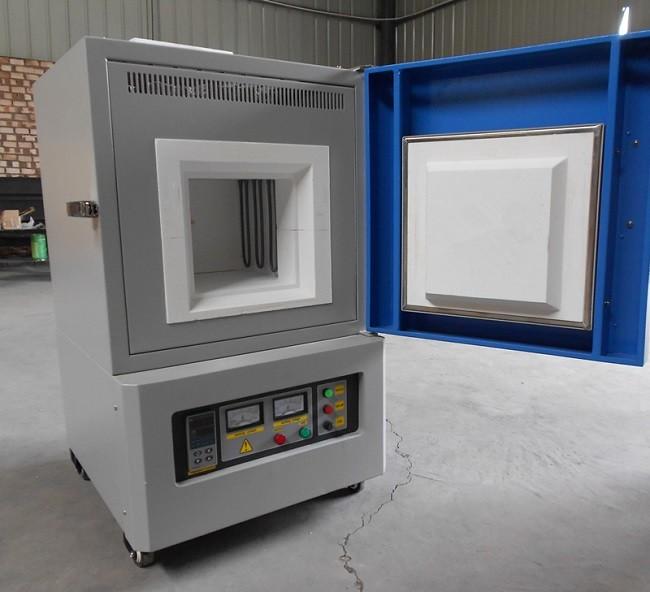

HCeramic Insulation Muffle Furnace introduction:
1. 1200°C,1400°C,1700°C maximum operating temperature.
2. High purity fibrous alumina insulation for maximum energy saving .
3. Heating elements on all three sides of interior chamber for fast heating and enhanced temperature uniformity.
4. Double layer steel structure with air cooling fan to keep furnace's exteriors safe to touch.
5. Safty interlock will automatic power off the furnace when door is opened.
6. PID automatic control via current limiting phase angle fired the resistor, e.g. SC R(Silicon Controlled Rectifier).
7. Power control with 30 segments programmable.
Ceramic Insulation Muffle Furnace function :
Muffle chamber furnace adopted high quality alumina polycrystalline fiber, which used Japanese technology (vac-sorb forming alumina polycrystalline fiber) with good insulation and durability properties, high tensile strength and no miscellaneous ball; Chamber surface coated with imported 1700 degree high temperature resistant heat insulation coating, it can improve the reflectivity and the heat efficiency of furnace, and prolong the service life of furnace. So this furnace much more energy saving than the furnace use common fiber materials.
Chamber muffle furnace technical data :
| Model | SP-1800B-1 high temperature muffle furnace |
| Power supply | AC 220V 50/60HZ |
| Furnace chamber | 100*100*100mm(W x H x D Customizable) |
| Rated power | 2KW |
| Furnace chamber | 1900 type alumina polycrystalline fibers furnace chamber, scientific design and with durable, good insulation properties. |
| Heating elements | High quality silicon molybdenum rod (MoSi2 rod) |
| Thermocouple | B-type double platinum rhodium thermocouple |
| Temperature control mode | The temperature control system uses artificial intelligence technology, with PID control, self - tuning function, 50 segment heating and cooling program |
| Continuous working temperature | ≤1700℃ |
| Maximum temperature | 1800℃ |
| Max. Heating rate | 20℃/min |
| Recommended heating rate | 15℃/min |
| Temperature control accuracy | ±1℃ |
| Standard accessories | Door brick 1 piece ;Crucible tongs 1 piece |
| Optional accessories | Furnace hobs , a variety of corundum crucible, oven glove,computer control software and paperless recorder, etc. |
Standard model of SP muffle chamber furnace :
| Model | Max. Temp. | Chamber size(WxHxD mm) | Working voltage and power |
| SP-1800B-1 | 1800℃ | 100x100x100mm(4”x4”x4”) | AC,1-phase,220V/1.5KW |
| SP-1800B-4.5 | 1800℃ | 150x150x200mm (6"x6"x8") | AC,1-phase,220V.4.5KW |
| SP-1800B-8 | 1800℃ | 200x200x200mm (8"x8"x8") | AC,1-phase,220V,6KW |
| SP-1800B-12 | 1800℃ | 200x200x300mm (8"x8"x12") | AC,1-phase,220V,8KW |
| SP-1800B-36 | 1800℃ | 300x300x400mm (12"x12"x16") | AC,3-phase,380V,16KW |
Warranty: One year limited warranty with lifetime support, excluding heating element
and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage
from wrong operate and use are not under this coverage
Packing and shipping :
Muffle furnaces are covered with polyfoam/sponge before put them into the plywood carton,which not only has good shock absorption, impact resistance and nontoxic, odorless, moisture corrosion etc.
Shipment by sea, by air or by express as per customer's requirement.
