1700C Chamber Heat Treatment High Temperature Electric Muffle Furnace

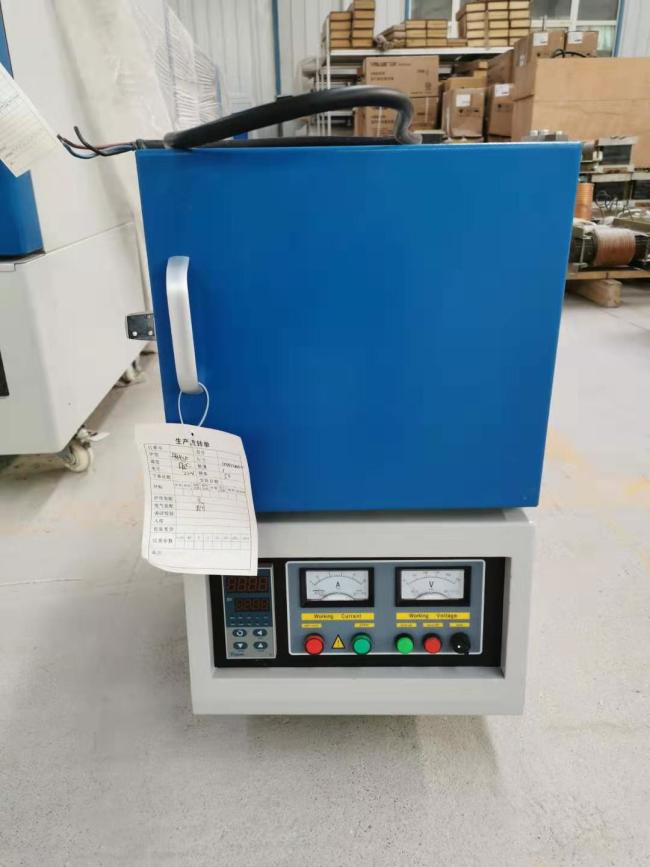

1700C Chamber High Temperature Electric Muffle Furnace
Heat treatment electric muffle furnace instruction :
The heat treatment electric muffle furnaces are the right choice for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The muffle lab electric furnaces come equipped with either a flap door or lift door at no extra charge.
- Tmax 1700 °C
- Heating from two sides by ceramic heating plates (heating from three sides for large lab electric furnaces
- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
- Only fiber materials are used which are not classified as carcinogenic according
- Dual shell housing for low external temperatures and high stability
- Adjustable air inlet integrated in door (see illustration)
- Exhaust air outlet in rear wall of furnace(alternal)
- Solid state relays provide for low-noise operation
- Defined application within the constraints of the operating instructions
Additional equipment for electric muffle furnace
- Over-temperature limiter with adjustable cutout temperature for thermal protection
- Protective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)
- Observation hole in the door
- Manual or automatic gas supply system
- Process control and documentation via VCD software package for monitoring, documentation and control
Main technical parameter of 1700C lab electric muffle furnace :
| model | SP-1700B-64L electric muffle furnace |
| Standard Working Temperature | 1600°C( continuous ) |
| Maximum Working Temperature | 1700°C ( < 3 hrs) |
| Inside Chamber Size | Customizable |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15°C/ min (suggestion:<10°C) |
| Temperature Accuracy | +/- 1°C |
| Temperature uniformity | +/- 1°C |
| Working Voltage | AC 380V 3- Phase 60/50 Hz (or according to your requirement) |
| Furnace structure | Double shell with fan cooling |
| Heating Element | MoSi2 heating element |
| Thermocouple | B type |
| Max. Power | 24KW |
| Standard package included with the furnace: | |
| Part description | Quantity |
| Thermal couple | 1 pc |
| Door block | 1pc |
| Stainless steel hook | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 set |
| MoSi2 rod (extra) | 2pcs |
Many experiments and procedures taken in the lab requiring extreme heat environment from 400-1900.C. For this purpose, the high temperature electric muffle furnace steps in as the necessary part of laboratory equipment. SUPER furnace are providing the lab electric furnace at a affordable cost including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.
SUPER lab electric muffle furnace shipping:
1. Order processing?
Please allow a processing time of 12-24 hours for your order(s) to ship. Equipment orders will take up to 2 weeks before leaving our warehouse. (Order processing is done during normal weekdays only, no holidays or weekends.)
2. Shipping methods?
1 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
2 Responsible for the damage during the shipping process, will change the damage part for you for free.
Henan SUPER Company introducton :
Our company is specialized in manufacturing lab electric furnace,atmosphere furnace,tube furnace,crucible furnace,dental furnace,vacuum furnace,heat element(SIC,Mosi2),ceramic alumina fiber board,alumina tube,alumina crucible and related accessories.
The business was begun in 2010.Following the expansion of the company's business, Henan Super Machinery Equipment CO.ltd, a new company was just established.
Our products are exquisite beauty,excellent performances insulation and energy saving. Thousands of satisfied customers have written to us to express their satisfaction with our products.
With 9 years of experience in providing high temperature electric lab furnaces. we are committed to providing you with the best service in China and all over the world.
