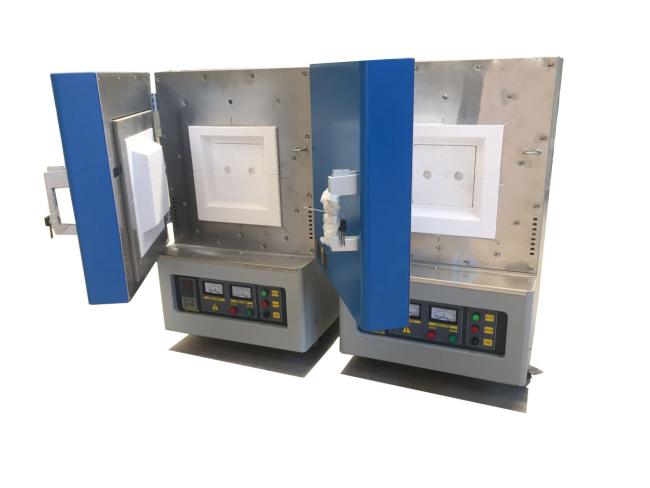

High Temp Gold Silver Melting 12L Industrial Muffle Furnace
High Temperature Gold Silver Melting Industrial Muffle Furnace
Heat Treatment Melting Industrial Muffle Furnace Features:
1. Double layers steel casing with air cooling to keep furnace surface temperature lower than 50°C, much safer to touch.
2. High purity fibrous alumina insulation for Max. energy saving.
3. Special refractory coating on inner and heating element to increase furnace life.
4. PID temperature controller to meet full automatic constant temperature function.
5. Fast heat-up to reduce energy consumption.
6. Over temperature protection and over-load protection.
Metal melting industrial muffle furnace using polycrystalline mullite fiber lining, and the total thickness is 120-250mm, to ensure the very good thermal effect. Double layer of furnace shell with fan cooling, the surface temperature is less than 60℃. Strength structured furnace roof, to ensure long life to avoid any collapse from continuous working.
This industrial muffle furnace is mainly used for universities, research institutes and production enterprises for the sintering, melting, analysis of metal, non-metal and other compound materials.
Technical parameter of SUPER industrial muffle furnace :
| model | SP-1200B-12L metal melting industrial melting furnace |
| Standard Working Temperature | 1100.C ( continuous ) |
| Maximum Working Temperature | 1200.C ( < 3 hrs) |
| Inside Chamber Size | Customizable |
| Temperature Control | 30 steps programmable and PID automatic control |
| Heating Rate | 0~15.C/ min (suggestion:<10.C) |
| Temperature Accuracy | +/- 1.C |
| Working Voltage | AC 220V Single Phase 60/50 Hz (or according to your requirement) |
| Furnace structure | Double shell with fan cooling |
| Heating Element | resistance wire |
| Thermocouple | K type |
| Max. Power | 11KW |
| Standard package included with the furnace: | |
| Part description | Quantity |
| Thermal couple | 1 pc |
| Door block | 1pc |
| Stainless steel hook | 1 pc |
| Thermal gloves | 1 pair |
| Operation manual | 1 set |
Many experiments and procedures taken in the lab requiring extreme heat environment from 400-1900.C. For this purpose, the high temperature muffle furnace steps in as the necessary part of laboratory equipment. SUPER furnace are providing the muffle furnace at a affordable cost including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
