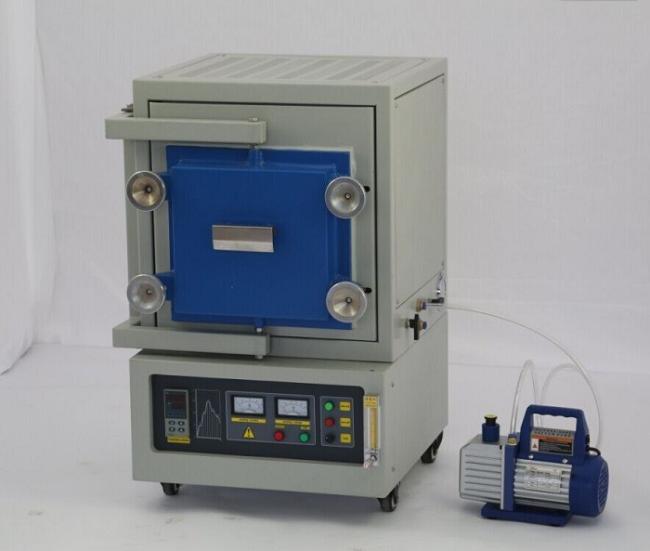

1200C 36L Resistance Vacuum Atmosphere Furnace Double Shells For Factory
1200C 36L Resistance Atmosphere Protect Furnace For Factory Producing
Atmosphere protect furnace application:
SP high temperature vacuum furnace is widely used in denture processing industry, scientific research institutes, as well as high temperature sintering of power metallurgy industry, annealing, zirconia sintering, ect.. high temperature heat treatment processing.
Resistance wire atmosphere furnace features:
1) Appearance using high temperature resistance, corrosion resistance paint electrostatic Spraying treatment.
2) The furnace is sintered from high temperature refractories and has a longer service life.
3) The console adopts Intelligent PID Digital display Controller, which has good stability and high precision.
4) Furnace door using thickening, reinforcement and other treatment methods to prevent deformation.
5) Furnace lining using high-quality insulation cotton, insulation effect is better.
6) The line is easy to connect, the diagram is clear and the operation is convenient.
The technical data of 12"*12"*16" 1200C resistance wire atmosphere furnace:
| Name | Resistance wire atmosphere furnace |
| Hearth Model | side open type |
| Display Model | Highlight LED Display |
| Maximum Temperature | 1200℃ |
| Working Temperature | ≤1100℃ |
| Heating rate | Suggest:10-15℃/Min Max:20℃/Min |
| Heating zones | Single heating zone |
| Hearth dimensions | 300mm×300mm×400mm |
| Hearth volume | 64L |
| Control mode | Intelligent PID auto control |
| Temperature Accuracy | ±1℃ |
| Vacuum level | -0.1MPa |
| Temperature curve | 30 segments programmable |
| over heat alarm | Have |
| overcurrent protection | Have |
| Thermocouple Failure Protection | Have |
| Temperature measure element | K-type thermocouple |
| Heating Element | Fe-Cr-Al-Mo wire (OCr27Al7Mo2) |
| Hearth Material | High purity alumina fiber |
| Power Supply | 220V 50Hz |
| Certification | CE certification |
| After-sales service | 12 month warranty, durable maintaince and repair support |
| Packing | plywooden case |
| Accessories | Power line, protective glove,user manual |
Package
♥ . Packing detailed: plastic foam inside, wooden box outside and according to custom requirement.
♥ . Shipping detailed:30 days after receiving your deposit.
Time of delivery of vacuum atmosphere furnace:
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
Our Advantages :
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
Our Service:
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
