Small Volume Silver / Gold Melting Furnace For Jewelry Casting 2.1KW Rated Power

    Silver Gold Melting Machine Small Volume Gold Melting Furnace for Jewelry Casting

1. Applications of gold melting furnace :

Gold Melting Machine are made for casting, reclaiming, alloying, and refining gold, silver and other metals with similar or lesser melting temperatures. Equipped with electronic temperature controls with digital displays, these melters can reach a maximum temperature of 2102F (1150 C). The digital temperature control will prevent overshoot and protect the heating element from overheating. Tongs are provided to easily remove crucible.

New type melting furnace apply SSR controller, alloy made heater with melting temp up to 1900, high temp proof ceramic melting Chamber, high aluminium protection.

2. Instruction and features of gold melting furnace:

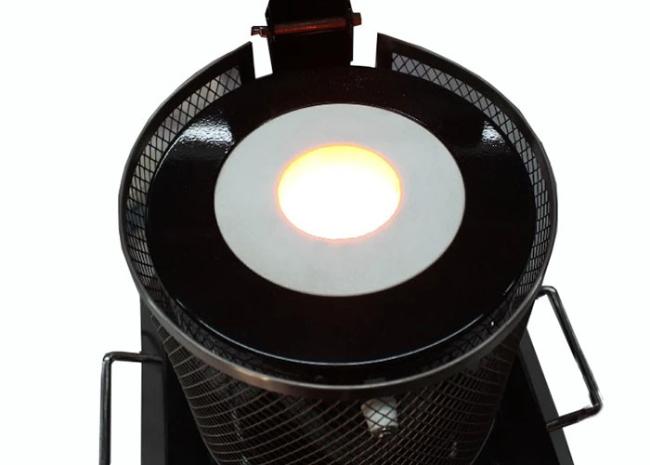

The mini portable melting furnace with compact design is ideal for professional use. By using high-quality materials, the smelting furnace can meet the requirements of the industry and the workshop, are suitable for the processing of precious metals such as gold, silver and copper.

The crucible consists of pure graphite, and is therefore the first choice for melting furnace, since high heat resistance is ensured. The crucible was formed by turning, thus maintaining the stability of the mineral completely. An outlet notch facilitates the easy pouring and filling of the melt.

The maximum adjustable temperature of our product is 1150 degrees celsius. Thus, the melting furnace is perfectly designed for the melting of precious metals. The melting point of silver is 962 degrees celsius, gold is 1064 degrees celsius and copper is 1084 degrees celsius. The regulation of the melting temperature is very user-friendly via a highly modern PID module. This module allows the digital adjustment of the setpoint temperature to the degree accurately. The PID module monitors the actual temperature in the melting chamber at 2-second intervals so that it does not overheat or cool down. The temperature is kept constant around the melting point.

3. Technical data of gold melting furnace :

4. Delivery time and method

♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;

♥ Other customized sizes the delivery time is from 7 days to 15 days according to different products request.

♥ Delivered by express,such as UPS,FedEx,DHL,TNT and so on;3-7 working days to the destination generally; Large orders will be delivered by sea if it is not urgent for you .
♥ Payment Terms:T/T,Western Union ....

♥ Delivery time:Within 7 days after getting the payment;

6. Crucible Melting Machine Warranty :

(1) control circuit 1 year ;

(2) furnace pipe 6 months;

(3) heating elements: for pure gold and silver warranty for 3 months ;if for corrosive material ,no warranty.

7. SUPER Machinery advantages:

♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.

♥ We supply good service after sale, you can be assured about that
