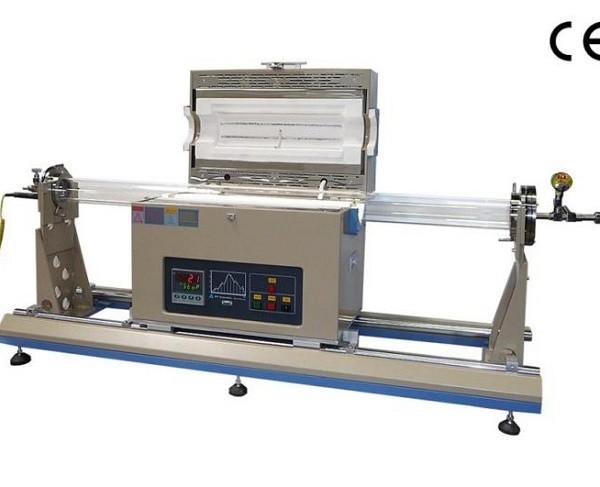

High Temperture Quartz Tube Furnace , Ceramic Fiber Insulation Vacuum Tube Furnace
Energy Saving Atmosphere Tube Furnace High Temperture Ceramic Fiber Insulation
Brief Introduction of atmosphere tube furnace
vacuum tube furnace adopts high pure alumina or quartz tube, working temperature from 300℃ to 1600℃. Adopt advanced temperature control system, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniformity. Mainly used for labs of the university, research center, and production enterprise, etc
Max temperature:
1200℃ (HRE Fe-Cr-Al-Mo wire)
1400℃ (SiC Heater)
1600℃ (MoSi2 Heater)
Main charactertics of atmosphere tube furnace
1: 30-50 Segments Programable and PID temperature controllor to make the operation more simple.
2: Furnace Chamber is made of Most advanced Alumina caremic fiber to keep the better heat preservation .
3: Double shell with fan cooling to make the shell temperature close to the room temperature.
4: Intergrated doule circruit to make the furnace more safe , stable and realiable.
5: Humanized design and advaned technics to make the furnace more beautiful and durable.
6: Furnace Tube is made of high purity Quartz or Alumnia and sealed by vacuum flange.
Technical parameter of 60*300mm atmosphere tube furnace:
| Product name and model | SP-1200T-63 vacuum tube electric furnace |
| Heating tube size(OD×L) | Dia60x300mm |
| Chamber insulation materials | light weight alumina ceramic fiber plate |
| Maximum temperature | 1200°C working time ( < 3 hours) |
| Working temperature | 400-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | K type |
| Heating element | resistance wire |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
SUPER COMPANY advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
SUPER COMPANY service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
Other sizes of tube furnace can also be available .Welcome to send email to us if you are interest in our tube furnace .
