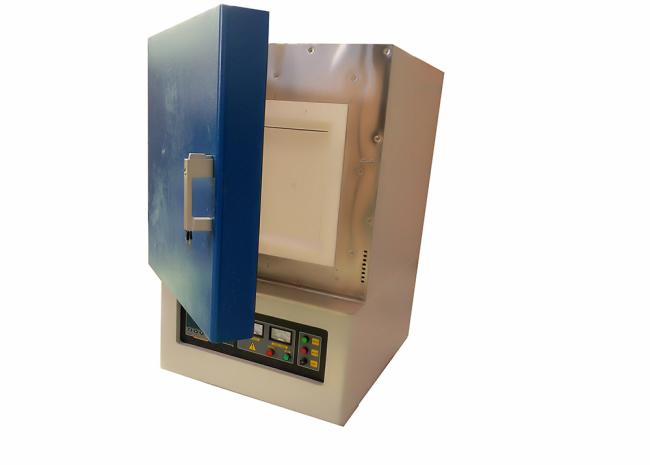

1600 Degree Electric Industrial Muffle Furnace Workpiece Heat Treatment
Electric Industrial Muffle Furnace Instruction :
The electric industrial muffle furnaces are the right choice for daily laboratory use. These models stand out for their excellent workmanship, advanced and attractive design, and high level of reliability. The ekectrica industrial muffle furnace comes equipped with either a flap door or lift door at no extra charge.
- Tmax 1200 °C
- Heating from two sides by ceramic heating plates (heating from three sides for large muffle furnaces
- Ceramic heating plates with integral heating element which is safeguarded against fumes and splashing, and easy to replace
- Only fiber materials are used which are not classified as carcinogenic according
- Dual shell housing for low external temperatures and high stability
- Adjustable air inlet integrated in door (see illustration)
- Exhaust air outlet in rear wall of furnace(alternal)
- Solid state relays provide for low-noise operation
- Defined application within the constraints of the operating instructions
Scope and Field for Laboratory Muffle Furnace
1. AEROSPACE
The Laboratory Muffle Furnace can be used in high-temperature tempering, annealing, quenching and other heating treatment processes of structural high-temperature metal materials and composites of aircraft and spacecraft engines
2. MILITARY MANUFACTURING INDUSTRY
Can be selected for all kinds of parts and components requiring heat treatment in military factories
3. SCIENTIFIC RESEARCH
we have rich experience in product in the field of scientific research, series products of 1200 ℃ to 1700 ℃ for schools and institutions.
4. PETROCHEMICAL
The Laboratory Muffle Furnace is suitable for the preparation and sintering of petrochemical products.
Technical parameter of SUPER electric industrial muffle furnace :
| model |
SP-1200B-12L lab electric industrial muffle furnace |
| Standard Working Temperature |
1500°C ( continuous ) |
| Maximum Working Temperature |
1600°C ( < 3 hrs) |
| Inside Chamber Size |
Customizable |
| Temperature Control |
30 steps programmable and PID automatic control |
| Heating Rate |
0~15°C/ min (suggestion:<10.C) |
| Temperature Accuracy |
+/- 1°C |
| Working Voltage |
AC 220V Single Phase 60/50 Hz (or according to your requirement) |
| Furnace structure |
Double shell with fan cooling |
| Heating Element |
MoSi2 rod |
| Thermocouple |
K type |
| Max. Power |
6KW |
| Standard package included with the furnace: |
| Part description |
Quantity |
| Thermal couple |
1 pc |
| Door block |
1pc |
| Stainless steel hook |
1 pc |
| Thermal gloves |
1 pair |
| Operation manual |
1 set |
Many experiments and procedures taken in the lab requiring extreme heat environment from 400-1900.C. For this purpose, the high temperature electric muffle furnace steps in as the necessary part of laboratory equipment. SUPER furnace are providing the muffle furnace at a affordable cost including box muffle furnace, crucible furnace, dental furnace, atmosphere furnace, vertical furnace, tube furnace and etc.
Delivery times :
♥ For some normal standard size furnaces and components, we have in stock; So we can send out in 2-3 days;
♥ Other customized sizes the delivery time is from 15 days to 30 days according to different products request.
Our Warranty :
Warranty: One year limited warranty with lifetime support, excluding heating element and ceramic tube damaged by user.
Attention: Any damages caused by the use of corrosive and acidic gases, and any damage from wrong operate and use are not under the coverage of One Year Limited Warranty.
![]()
