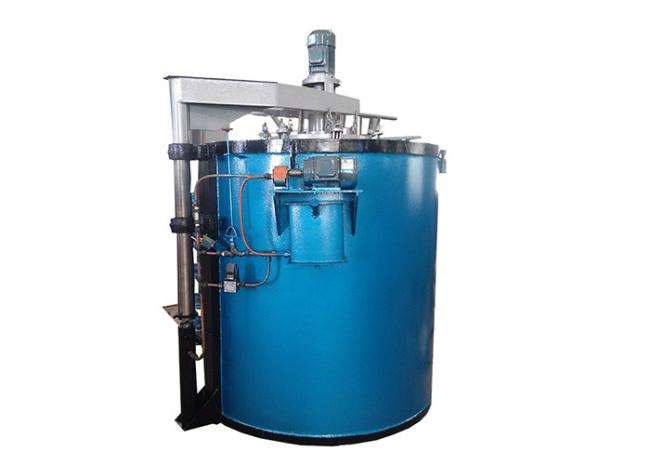

Pit Type 60KW Vacuum Carburizing Furnace For Low Carbon Steel

Vacuum Carburizing Furnace is new type and energy-saving furnace,working temperature is 950℃,mainly used for rod and long axis steel mechanical parts for gas carburizing,the workpiece is vertically loaded in furnace tank,not easy to deformation

Features of resistance electric furnace :
1. Electric furnace has large fan device, furnace temperature uniformity.
2. Electric furnace more area and control, further improve the uniformity of furnace temperature.
3. The zone in the hearth stainless steel inlet bucket.
4. Furnace cover with furnace adopts high temperature resistant fiber cotton production, furnace heat preservation performance is good, save energy and reduce the production cost.



Parts Description of steel carburizing furnace:
1), Shell:made by steel plate and structural steel.
2), Inside of furnace cover: made by stainless steel plate.
3), Burner liner: using the super light and energy conservation micropore fire-resistant heat reserving brick
4), Aluminum silicate fiber at between burner liner and shell, and also fill full of thermo-insulating power in gap.
5), Resistance wire: use the 0Cr25Al5 high resistor alloy wire installed upon brick.
6), Furnace cover: use the manual lever lifter or motor-driven or hydraulic.

7) , We have installed fan which made by a heat-resistance stainless steel shaft and fan blade for uniform heating the work-piece
8), Limit switch installed near the lifter device for safety operation.

Standard models of SUPER gas carburizing furnace:


Special requriement is also avaialble .
