Drying Oven Hot Air Sterilization Oven With Stainless Steel In Laboratories
Air Sterilizing Oven With Stainless Steel
The application of drying oven:
The Forced Air Circulation Drying Oven adopts hot air circulation system. hot air convection oven is composed of blower fan and proper air channels, which is capable of continous operation under high temperature, and improved the uniformity of the temperature inside the working chamber. Now the electric blast drying oven is widely applied for drying,baking wax-melting and sterlization for industrail in mining enterprises,laboratories,research units and so on.
Main parameters of 101 type electric heating constant temperature blast drying oven:
| Items | Unit |
101-00 101-00A 101-00AS |
101-0 101-0A 101-0AS |
101-1 101-1A 101-1AS |
101-2 101-2A 101-2AS |
101-3 101-3A 101-3AS |
101-4 101-4A 101-4AS |
|
| Voltage | V | 220 | 220 | 220 | 220 | 220 | 380 | |
| Frequency | HZ | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | |
| Phase | -- | Single | Single | single | Single | Single | Three | |
| Heater | group | 1 | 2 | 2 | 2 | 2 | 2 | |
| Power | KW | 1 | 1.6 | 2 | 2.6 | 4 | 9 | |
| Operate temp | ℃ | 300 | 300 | 300 | 300 | 300 | 300 | |
| Temp accuracy | ℃ | ±1 | ±1 | ±1 | ±1 | ±1 | ±1 | |
| Temp uniformity | ℃ | ±9 | ±9 | ±9 | ±9 | ±9 | ±9 | |
| Blower power | KW | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
| Blower speed | R/M | 2800 | 2800 | 2800 | 2800 | 2800 | 2800 | |
| Working zone | W | mm | 250 | 350 | 350 | 450 | 500 | 800 |
| H | mm | 250 | 350 | 450 | 550 | 600 | 800 | |
| D | mm | 250 | 350 | 450 | 550 | 750 | 1000 | |
Features of air drying oven :
1. With mirror surface in stainless steel, baffle removable, easy to clean

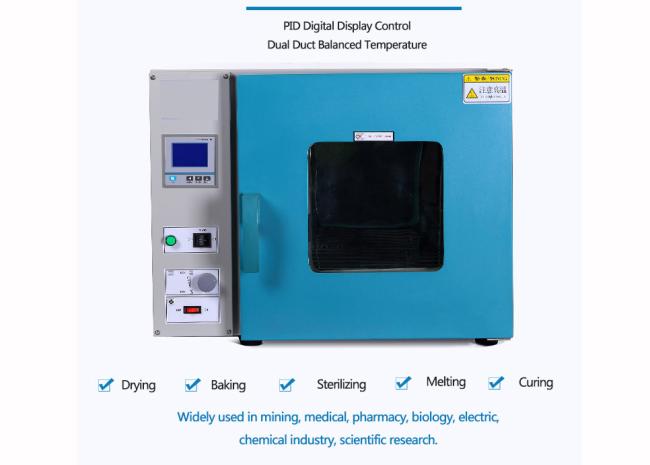

2. It adopts temperature control protection, digital display, microcomputer PID temperature controller with timer function to ensure precise and reliable temperature control.
3. New-style Silicon gasket ensure long-life under high temperature, and easy to replace.
4. Can adjust flow of blast & exhaust in control panel.
