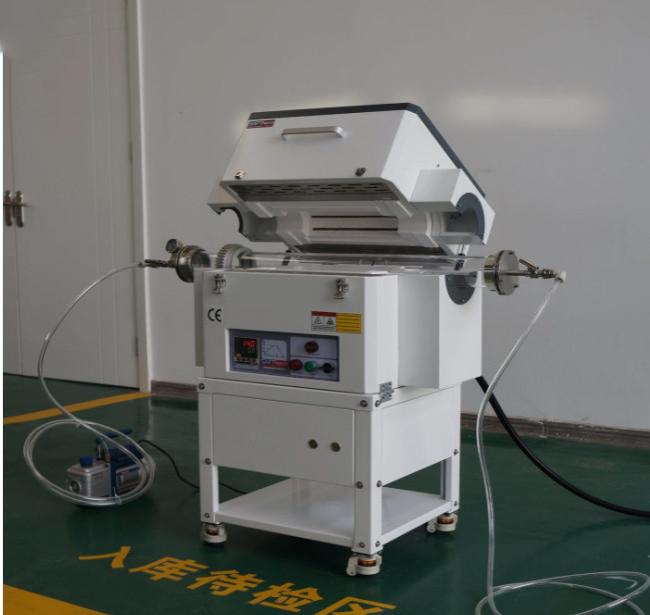

1200c High Temperature Tilting Rotating Tube Furnace For Materials Heating
120C High Temperature Rotating Tilting Tube Furnace
Brief Introduction of Rotating Tilting Tube Furnace :
Vacuum rotating tilting tube furnace adopts high pure alumina or quartz tube, working temperature from 300℃ to 1600℃. Adopt advanced temperature control system, high temperature accuracy, easy operation, excellent heat-insulation effect, symmetrical temperature uniformity. Mainly used for labs of the university, research center, and production enterprise, etc
Max temperature:
1200℃ (HRE Fe-Cr-Al-Mo wire)
1400℃ (SiC Heater)
1600℃ (MoSi2 Heater)
Main charactertics of Rotating Tilting Tube Furnace:
1: 30-50 Segments Programable and PID temperature controllor to make the operation more simple.
2: Furnace chamber is made of most advanced alumina caremic fiber to keep the better heat preservation .
3: Double shell with fan cooling to make the shell temperature close to the room temperature.
4: Intergrated doule circruit to make the furnace more safe , stable and realiable.
5: Humanized design and advaned technics to make the furnace more beautiful and durable.
6: Furnace Tube is made of high purity Quartz or Alumnia and sealed by vacuum flange.
Technical parameter of Atmosphere Rotating Tilting Tube Furnace furnace:
| Product name and model | SP-1200T-63 vacuum tube electric furnace |
| Heating tube size(OD×L) | Dia60x300mm |
| Chamber insulation materials | light weight alumina ceramic fiber plate |
| Maximum temperature | 1200°C working time ( < 3 hours) |
| Working temperature | 400-1100°C (adjustable, for long time ) |
| Temperature control | Intelligent 30 segments programmable and PID auto control |
| Heating rate | 1-15℃/min (adjustable) |
| Temperature accuracy | ±1℃ |
| Thermocouple | K type |
| Heating element | resistance wire |
| Ultimate vacuum | -0.1Mpa |
| Vacuum pump specifications model | 0.5A, pumping rate 0.5L/S, power 120W |
| Furnace shell | Double shell with fan cooling |
| Temperature display mode | Four Figure Liquid Crystal Display |
| Working power | AC 1-phase, 110V-240V, 50Hz/60Hz |
| Spare function | installed computer communication module and RS485 communication interface,to realize the remote control. (If there need spare function, cost will be added |
Packaging & Shipping
Standard Export Safe Packing for 1200C Laboratory Rotating Tilting Tube Furnace
1.The high pressure tube furnace was warped with enrivonmental plastic stretch film, then fixed well on the fumigation-free pallet
2.Tailored polywood case, coupled perfectly with the pallet
3.Filled with polyfoam, fit well between the furnace body and the case in all sides
4.Easy-to-identify double-sided outer box print logos and shippment marks
Delivery Time: 25 working days against receiving advanced payment
Port: Shanghai/Qingdao
SUPER COMPANY Tube Furnace Advantages:
♥ We are a manufacturer in China. So we can control the cost well.
♥ We use the top material in our furnace, imported ceramic fiber and accuracy temperature controller.
♥ We supply good service after sale, you can be assured about that
SUPER COMPANY service :
♥ Reply your inquiry and questions in 24 hours.
♥ Our professional technicians answer all your questions in English.
♥ Customized design is available.
Other sizes of tube furnace can also be available .Welcome to send email to us if you are interest in our tube furnace .
