Truss Stage Aluminum 390mm*390mm Stage Roof Truss Concert Stage Truss Small Stage Lighting Truss outdoor Truss System

Aluminum Alloy 390mm*390mm Spigot Truss

Parameter

• Material: Aluminum Alloy 6061-T6 or 6082-T6
•
• Size: 390mm*390mm (15.35inch*15.35inch)
•
• Color: Silver, Black, Others colours available on request
•
• Main Tube Diameter: 50mm
•
• Main Tube Thickness: 3mm
•
• Brace Tube Diameter: 25mm
•
• Brace Tube Thickness: 2mm
•
• Truss Length: 0.5M, 1M, 1.5M, 2M, 2.5M, 3M, 3.5M, 4M Customizable.
•
• Type: Straight, Arch, Ladder, Triangle, Square

Standard available Length in Meters and Feet

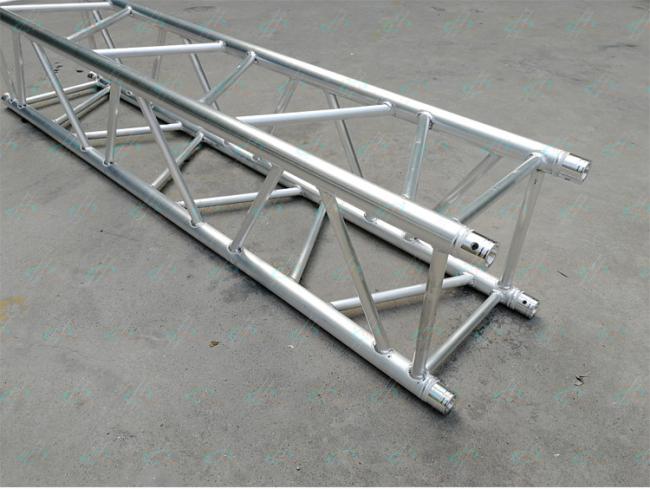

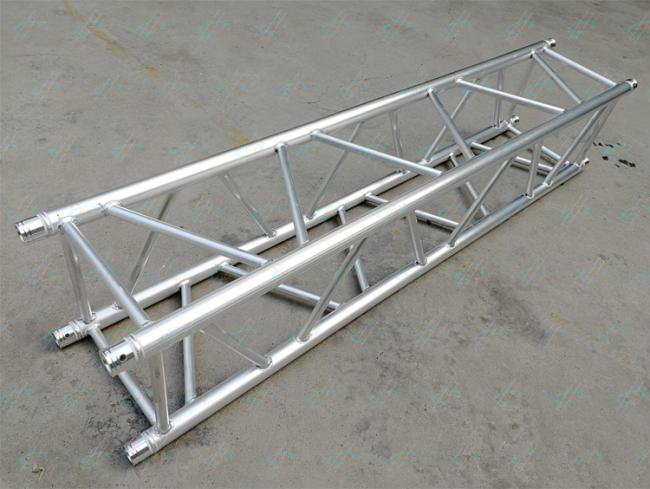

Products Pictures:

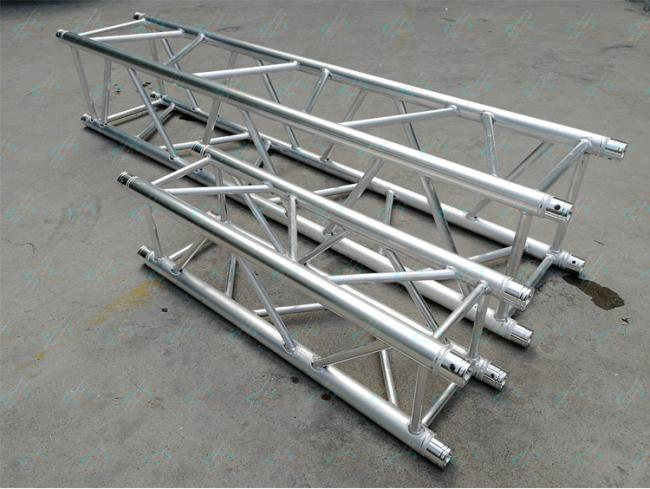

390mm*390mm Truss Compare with 290mm*290mm Truss

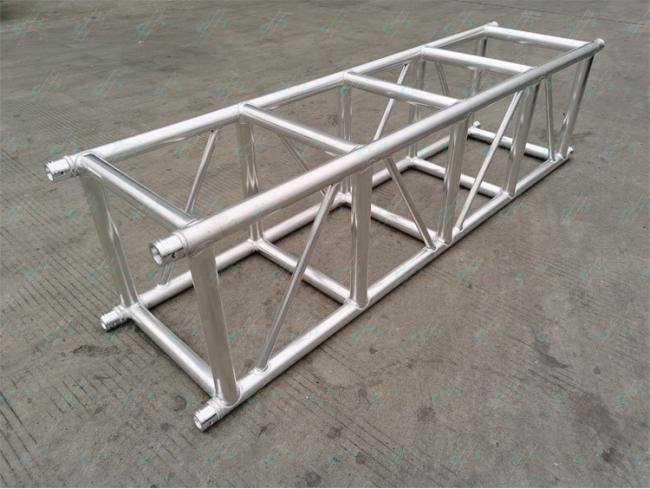

390mm*390mm Truss with Big Vice Tube

Application Scenarios

Certificates

Aluminum Truss Installment Advice:

1. Span 1-12M

    If the span of beam is less than 12M, you can use 290mm*290mm truss

2. Span 12-18M

    If the span of beam is within 12M to 16M, you can use 390mm*390mm truss

3. Span 18-22M

    If the span of beam is within 16M to 20M, you can use 400mm*600m or 520mm*520mm truss

4. Span 22-24M

    If the span of beam is within 20M to 24M, you can use 520mm*760mm truss

Please kindly contact us to get more details.
