Instruction For Installation

Step 1: Put the base on the ground according to the dimention of the truss.

Step 2:Install the hinge on the base.

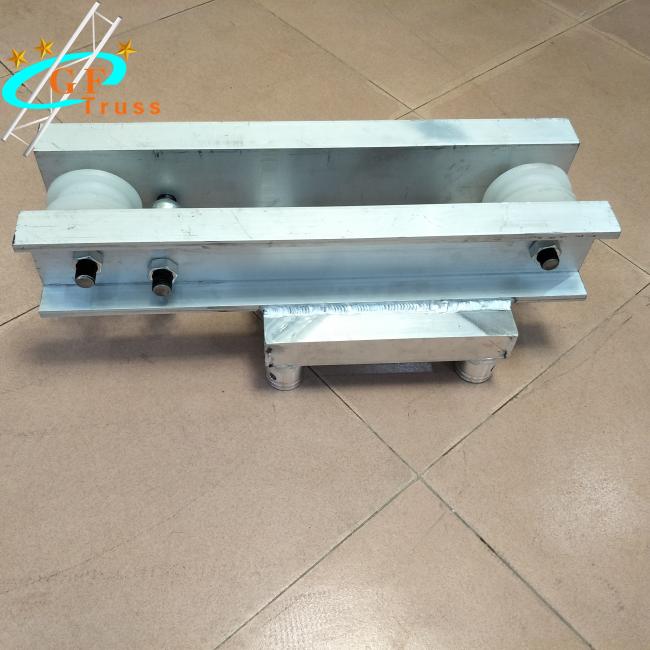

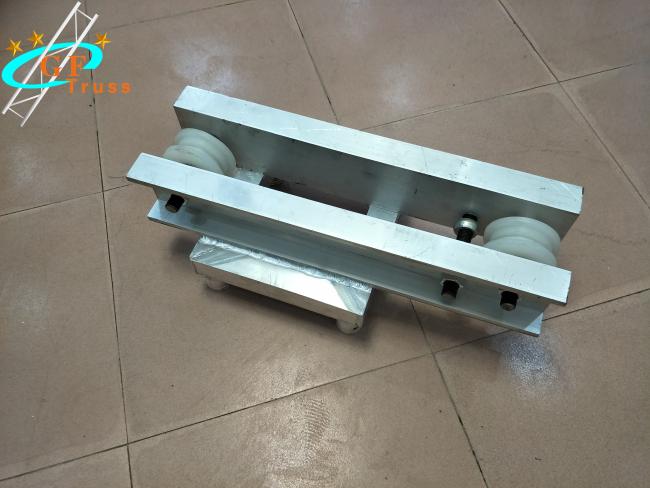

Step 3:Put the hinge into the sleeve.

Step 4:Make the pillar connect with the hinge ,put the top of the pillar on the ground ,then install the top section and the hand chain hoist .

Step 5:Complete all pillars according to above steps.

Step 6: The cross beams are connected to the sleeve which form the top shape.

Step 7: The belt is tied the beam and then hung on the hoist .

Step 8:Pulling the hoists at the same time , making the beams balanced rise.

Step 9: Install the assist legs.

Step 10: Disassembly in reverse order .

Characteristic of Spigot Truss

This is one of mudium-sized ,6082/ T6 Aluminum material ,with the advantages of beautiful appearance ,small volume and eay to se up .Used for some medium performances .

Other irrgular shapes can be customized according to customers requirements .
