Hanging Curved LED Screen 0.8M 0.5M Aluminum Alloy Truss

Price Negotiable

Price: US$10-US$5000/set

MOQ: 1pc

Delivery Time: 5-7days

Brand: GF truss

Product Description

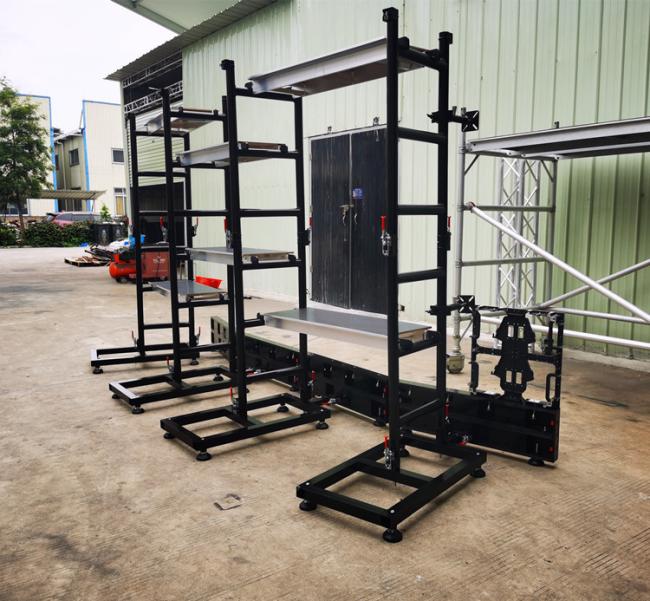

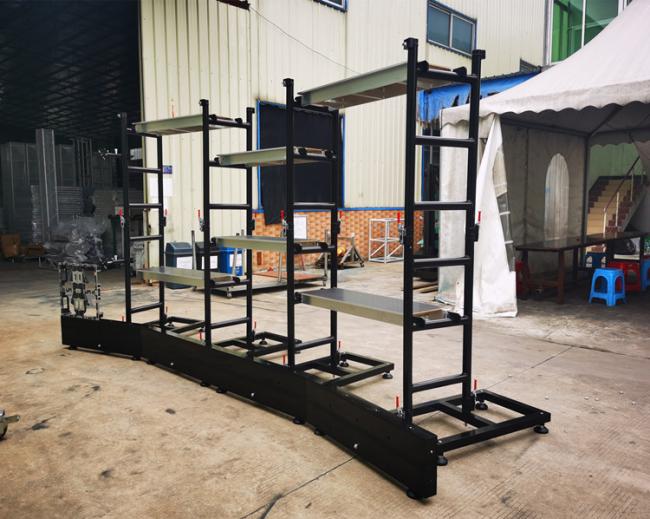

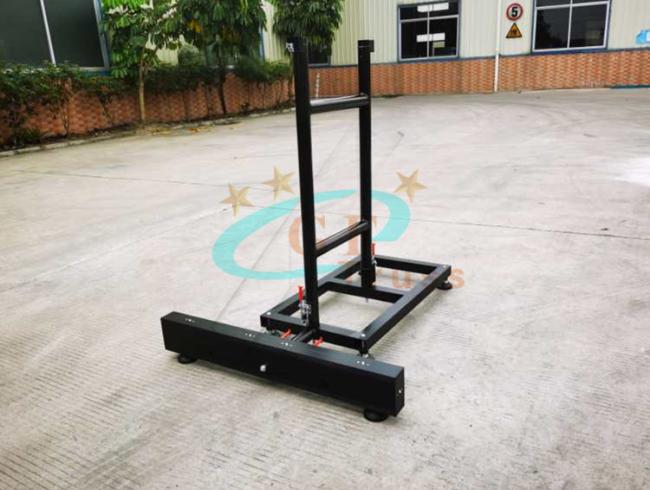

Hanging curved LED Screen Aluminum Alloy Truss Display LED Screen Background Support Ground Support Frame

1. Feature:

1) Aluminum Alloy Ground Support is light-weight and powerful.

2) All connection is easy lock

3) Fast disassembly structure

2. Products Details

Part of LED Screen Support	Specification
Background Supporter	Material: aluminum alloy 6061-T6 Main Tube: 503mm Measure: 50500*1000mm According to cabinet Size, also can do 0.5M, 0.8M and so on.
Adjustable Base	Material: aluminum alloy 6061-T6 Main Tube: 503mm Measure: 150500*1000mm
Ground Beam	Material: aluminum alloy Size:69×138×6mm Length:1M/pc With Easy Lock Measure: 1000X200X69mm According to cabinet Size, also can do 0.5M, 0.52M, 0.64M, 0.96M and so on
Lock+ Clamp	Material: aluminum alloy+Iron stretchable clamp
Footboard	Material: aluminum alloy + 9mm plywood Measure: 380851000mm According to cabinet Size, also can do different size footboard.
Horizontal Pipe	Material: aluminum alloy Length:1M/pc Measure: 50501000mm According to cabinet Size, also can do different size footboard.
