Event Aluminum Spigot Truss Tower Square Box Sleeve Block

Price Negotiable

Price: $20-$200/piece

MOQ: 1

Delivery Time: 5-10 work days

Brand: GF truss

Product Description

Outdoor Event Aluminum Spigot Truss Square Box Sleeve block for Aluminum Truss Tower

Specifications:

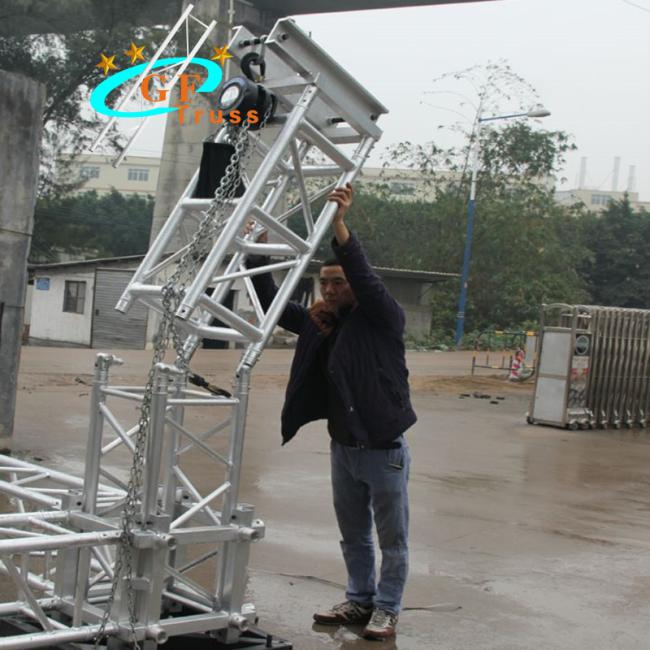

Sleeve block as a lifting tool for Beam. Easy to connect.

It can be applied for Bolt truss and Spigot truss with different size

Usage:

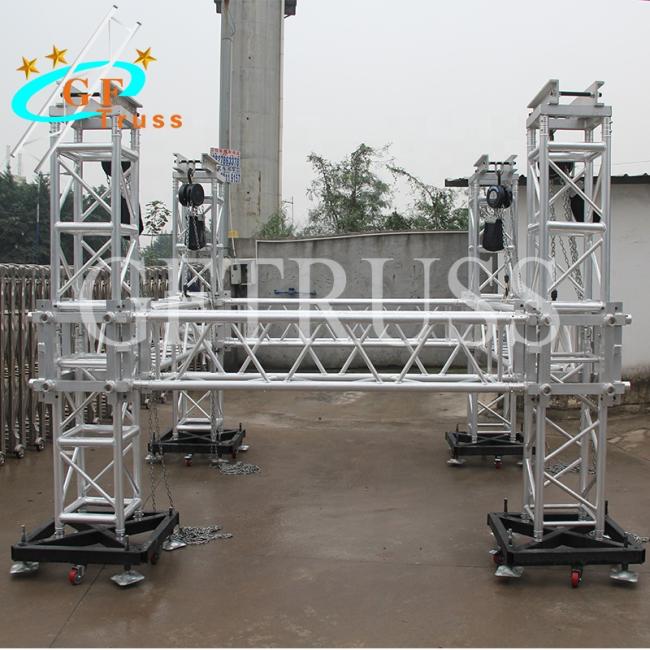

Connection with beam and pillar. It's suitable for handle controller and hoists controller, to make sure the trusses can be easy to up and down.

Advantage :

1, Connection with Beam and Pillar.

2, Inner with wheels, It can easy to up and down.

3, Its connection with spigot or screwing.

Product Description:

1. Product Name: Sleeve Block of Aluminum Alloy Spigot Square Truss

2. Size: 540mm*540mm*430mm

3. Standard: International Standard Aluminum Alloy 6061-T6 Material

4. Certification: ISO9001, CE, BV, TUV

Product Name	Sleeve Block for Beam and Pillar 290mm*290mm Spigot Square Truss System
Material	Aluminum Alloy 6061-T6, also can use 6082-T6
Color	Silver, Custom Color.
Length	540mm540mm430mm, Custom Length
Tube Size	Main Tube 503, Sub-main Tube 302, 4-sides Brace Tube 25*2.
Beam/Pillar Size	Beam 290mm290mm, Pillar 290mm290mm
Others Truss Size	390mm390mm, 450mm450mm, 400mm600mm, 520mm760mm and so on.
Used	Outdoor Concert, Event, Exhibition, Wedding.
