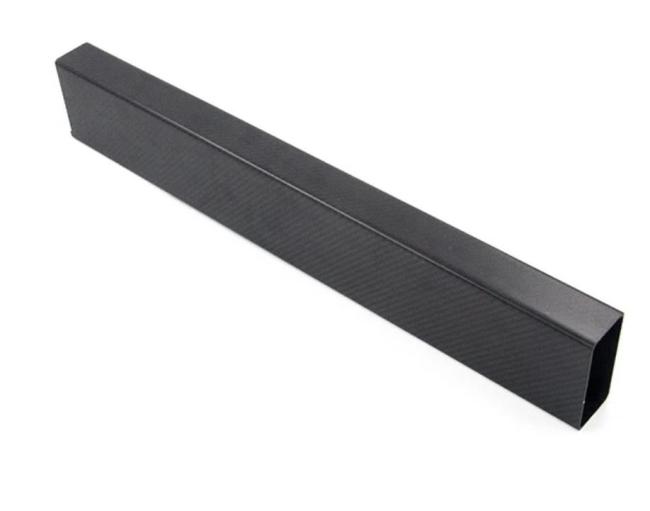

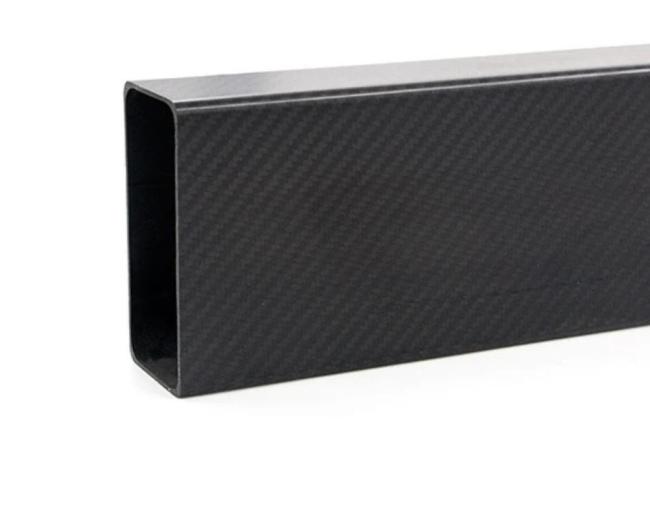

Photography Tripod 1 Inch Square Carbon Fiber Tube 3K Matte Painting Finish
Photography Tripod 1 Inch Square Carbon Fiber Tube 3K Matte Painting Finish
Roll wrapped prepreg carbon fiber tubes are constructed using multiple wraps of twill and/or unidirectional fabrics. It takes OPP wrapping technology to control quality of tubes, weight and thickness etc .
Carbon fiber tubes/poles are widely used in different applications like telescopic poles, sport equipment, exhaust pipes, Medical and Industry etc.
Phsical Parameter:
| Resin type | Epoxy |
| Tolerances | +/-1-2mm |
| Density | >1.65g/cm3 |
| Stiffness | >80-120Gpa |
| Bending Strength | >80-120Gpa |
| Tensile Strength | >650Mpa |
| Service Temperature | -40F to 248F |
Remark: OD means outer diameter, ID means inner diameter. Maximum length could be 5 meters.
| OD*ID*LENGTH mm | OD*ID*LENGTH mm | OD*ID*LENGTH mm | OD*ID*LENGTH mm | OD*ID*LENGTH mm |
| 5/3/1000 | 13/11/1000 | 23/21/1000 | 33/31/1000 | 47/45/1000 |
| 6/4/1000 | 14/12/1000 | 24/19/1000 | 34/32/1000 | 48/44/1000 |
| 7/5/1000 | 15/10/1000 | 24/22/1000 | 35/25/1000 | 48/46/1000 |
| 7/6/1000 | 15/11/1000 | 25/22/1000 | 35/33/1000 | 50/46/1000 |
| 8/6/1000 | 15/13/1000 | 25/23/1000 | 36/34/1000 | 50/44/1000 |
| 8/7/1000 | 16/12/1000 | 26/24/1000 | 37/35/1000 | 50/46/1000 |
| 9/7/1000 | 16/14/1000 | 27/25/1000 | 38/35/1000 | 50/48/1000 |
| 9/8/1000 | 17/15/1000 | 28/24/1000 | 38/36/1000 | 60/57/1000 |
| 10/6/1000 | 18/16/1000 | 28/26/1000 | 40/36/1000 | Customized |
| 10/8/1000 | 19/17/1000 | 29/25/1000 | 40/38/1000 | |
| 10/9/1000 | 20/16/1000 | 29/27/1000 | 41/39/1000 | |
| 11/8/1000 | 20/18/1000 | 30/26/1000 | 42/40/1000 | |
| 11/9/1000 | 22/18/1000 | 30/28/1000 | 43/41/1000 | |
| 12/6/1000 | 22/19/1000 | 31/28/1000 | 44/42/1000 | |
| 12/10/1000 | 22/20/1000 | 31/29/1000 | 45/43/1000 | |
| 12/11/1000 | 23/19/1000 | 32/30/1000 | 46/44/1000 |
Application :
Carbon fiber bicycle tube, photography tripod tube, golf clubs for sports and leisure, semi-finished fishing and fishing rods,
arrows, poles, ski poles, masts for ships, carbon fiber shafts for equipment, carbon fiber rollers for equipment, etc.
