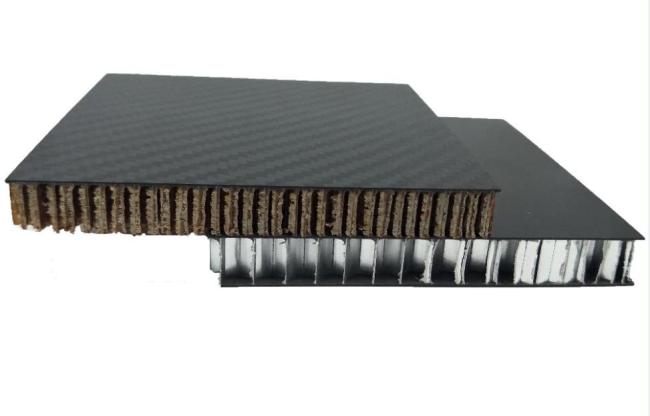

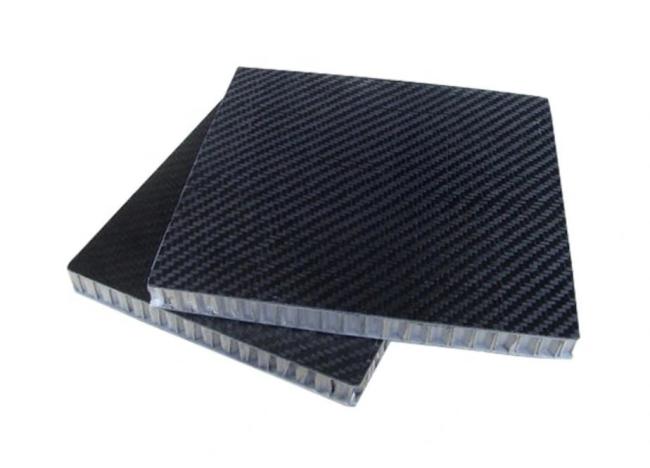

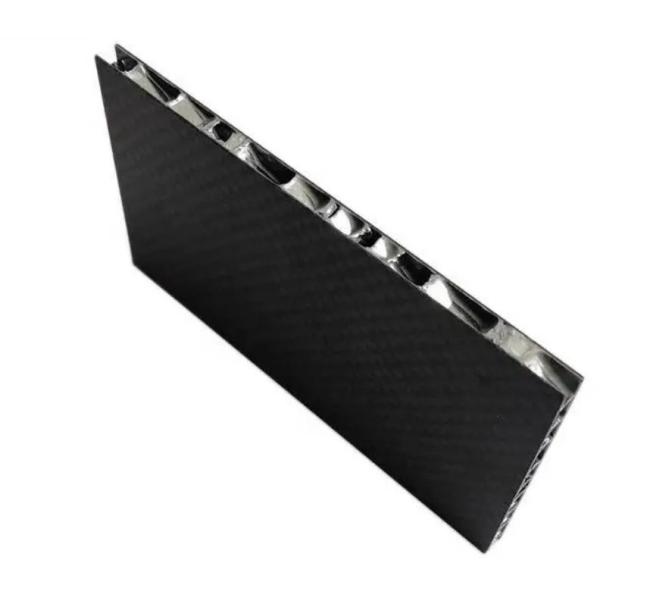

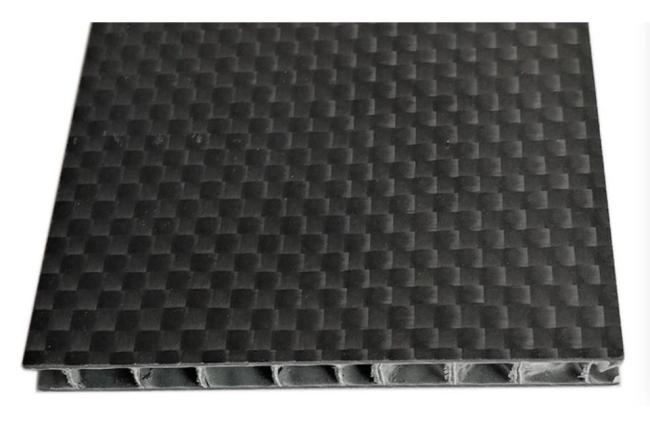

Light Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber Plate
Light Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber Plate
3K Twill carbon fiber sheet ,one construction parts with light weight, high density, high strength and high modulus. It saves lots of mould cost once take them as solid parts in structure . And CNC machining kinds of products you expect. Such as drone architecture , Powered toy car , medical,industry and so on .
The plate size can be customized by your requirement , Maximum dimension : 800CM *300CM
Phsical Parameter:
| Resin type | Epoxy |
| Tolerances | +/-1-2mm |
| Density | >1.65g/cm3 |
| Stiffness | >80-120Gpa |
| Bending Strength | >80-120Gpa |
| Tensile Strength | >650Mpa |
| Service Temperature | -40F to 248F |
Customized dimension. Maximun dimension is 8x3 meters.
Most Dimension as listing can be measured if needing size custom.
400MM*400MM, 400MM*500MM, 500MM*500MM, 600MM*600MM, 600*1000MM, 1000*1000MM etc
| 400*500*10mm | 500*500*10mm | 500*600*10mm |
| 400*500*15mm | 500*500*15mm | 500*600*15mm |
| 400*500*20mm | 500*500*20mm | 500*600*20mm |
| 400*500*30mm | 500*500*30mm | 500*600*30mm |
Application :
Drone architecture ,Powered toy car , Medical,Industry etc.
