High Power Ge Carbon Graphite Electrodes 550mm 22" 1.62-1.72 G/Cm3 Density
Price:
Negotiable
MOQ:
20MT
Delivery Time:
10 work days
Brand:
SHIDA
Product Description

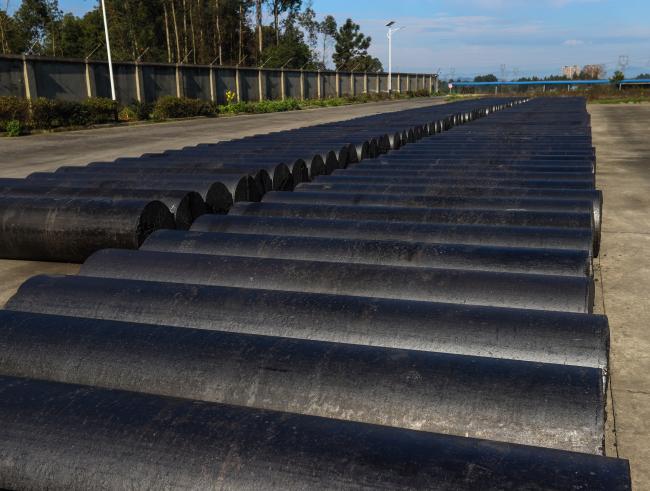

550mm High Power GE , 22" HP Graphite Electrode , Used for Electric Arc Furnace/Ladle Furnace

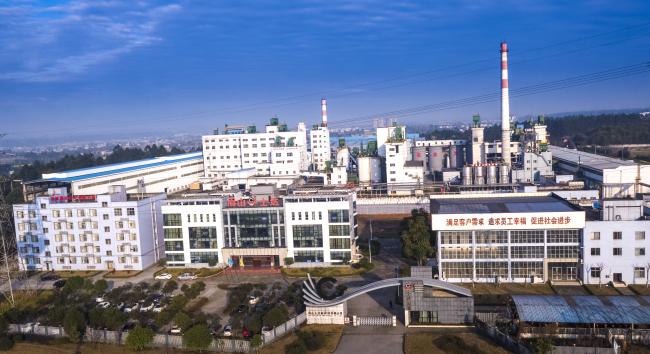

Sichuan Guanghan Shida Carbon Co., Ltd own 3 plants(2 plants for graphite electrode, 1 plant for istropic graphite electrode) with completed production equipments from raw material to graphitization and machining, controling product quality fully.
SHIDA's advantage:
1. professional electrode manufacturer: 30 years experience;
2. production capacity: 50000MT/year, which can ensure stable supply;
3. we have full process: all process is under our own quality control system, which ensure quality homogeneity. Many other Chinese suppliers are out-sourcing, they may only have extruding, graphitization and final packing, other process such as baking, impregnation, machining are out-sourced.
4. perfect production facility (hardware): all major /key production facility are imported from Japan and Germany.
5. best technology (software): our chief engineer Mr. Tan Weizhou is among top five expert in graphite electrode field in whole China.
General Properties:
| Item | Unit | UHP | HP | RP | UHP Nipple | HP Nipple | |||
| 450-500mm | 550-700mm | 450-500mm | 550-700mm | 400-450mm | 500-700mm | ||||
| Bulk Density | g/cm3 | 1.66-1.73 | 1.68-1.75 | 1.60-1.70 | 1.62-1.72 | 1.55-1.65 | 1.54-1.64 | 1.80-1.85 | 1.72-1.80 |
| Resistivity | μΩm | 4.8-6.0 | 4.5-5.8 | 5.2-7.5 | 5.5-7.2 | 7.5-9.0 | 8.0-9.5 | 3.0-4.3 | 4.0-6.0 |
| Flexual Strength | MPa | 10.5-15.0 | 10.0-14.0 | 10.5-14.5 | 9.0-13.5 | 8.0-11.0 | 7.0-10.0 | 20.0-30.0 | 18.0-25.0 |
| Elastic Modulus | GPa | 8.0-10.0 | 8.0-12.0 | 6.0-9.3 | 16.0-20.0 | 12.0-16.0 | |||
| CTE (30-600) | 10-6/℃ | ≤1.5 | ≤2.2 | ≤2.8 | ≤1.3 | ≤2.0 | |||
| Ash Content | % | ≤0.3 | ≤0.3 | ≤0.5 | ≤0.3 | ≤0.3 | |||
