110 Inch Length Uhp Graphite Electrodes 24 Inch Dia 317t4l / T4n Nipple
UHP600 GE with UHP Nipple , Carbon Graphite Electrode , 110 inch Length , 24 inch Dia
Sichuan Guanghan Shida Carbon Co., Lts was established in 2001, formerly the Shanxi Jiexiu Shida Carbon which was founded by Mr Zhang Shigong in 1990.
Shida Carbon is a Hi-Tech enterprise specialized on research and production of new carbon materials, also act as the vice chairman of China Association of Small and Medium Enterprises, director of China Carbon Industry Association, member of Carbon Material Council of Chinese Society for Metals and member of China Special Steel Enterprises Association.
The technology and equipment has stride into the advanced level worldwide: By importing core equipment of key processes from the United States, Germany and Japan, the technology and equipment of Shida Carbon has stood on the same line along with the most advanced carbon companies, more importantly our product quality has reached the advanced level as well.
The debugging time of isotropic graphite production line has made a shortest record among carbon industry.
Completed Test:
Grain Size Test
Elastic Modulus Test
Plug Gauge Inspection
Ring Gauge Inspection
Ultrasonic Inspection
Blending Strength Test
CTE Test
Pitch Viscosity Test
Pitch Composition Test
Micro Structure Test
Shida Branches:
Dechang Shida Carbon Co.,Ltd
Add: Sankeshu, Dechang County, Xichang, Sichuan Province.
Meishan New Material Co.,Ltd.
Add: Aluminum-silicon Industry park, Xiuwen Town, Dongpo District, Meishan,Sichcuan Province.
Sichcuan Shida Fine Carbon Co.,Ltd.
Add: Industry park, Guanghan, Sichuan Province.
Sichuan Shida Trading Co., Ltd.( Headquarter)
Add: Room 1011, 47 Yongfeng Road, Hi-tech District, Chengdu, Sichuan Province.

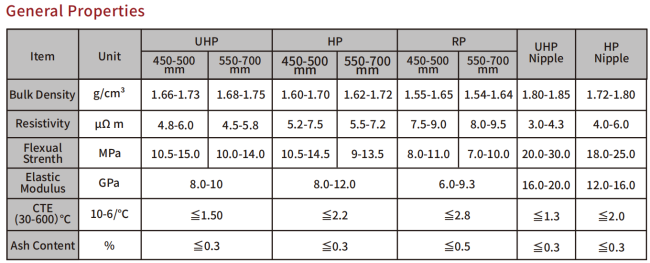

PAROPERTIES for Shida UHP600 GE
| Nipple |
AD (gm/cc) g/cm3 |
SPR (ohm Micro mtr) µΩ.m |
MOR (Nmm2) Mpa |
MOE ( kg/mm2) Gpa |
CTE//cmcmC x10-7(0-50℃) 10-6/℃ (100-600℃) |
| MAX | 1.84 | 3.5 | 27 | 18 | 1.2 |
| MIN | 1.78 | 3.0 | 20 | 14 | 0.9 |
| AVG | 1.81 | 3.3 | 23 | 16 | 1.1 |
| Electrode |
AD (gm/cc) g/cm3 |
SPR (ohm Micro mtr) µΩ.m |
MOR (Nmm2) Mpa |
MOE ( kg/mm2) Gpa |
CTE//cmcmC x10-7(0-50℃) 10-6/℃ (100-600℃) |
| MAX | 1.74 | 5.4 | 14 | 12.5 | 1.4 |
| MIN | 1.70 | 4.8 | 10 | 8.5 | 1.1 |
| AVG | 1.72 | 5.2 | 12 | 10 | 1.25 |
Japan Plug Gauge Inspection
