Panel waterproof connector and wiring, DEE DEU DBPU fishcer 4pins metal connector, 102 DEE A053 130
Panel waterproof connector and wiring, DEE DEU DBPU fishcer 4pins metal connector, 102 DEE A053 130

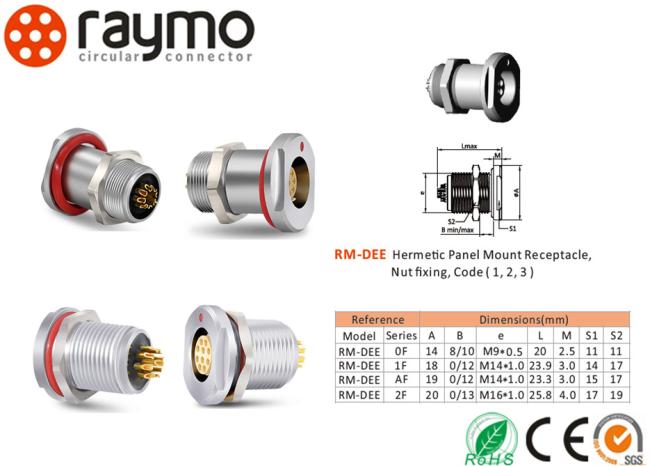

- DEE 102 A053 130=RM-DEE-0F1C-P04KS
- Panle fixed receptacle, 0F/102 series, 4pins, code 1, outer shell in natural chrome-plated brass, PPS insulator, female solder contacts,IP68 waterproof connector
- Push-pull Self-locking Metal Connector
- Compact and lightweight construction
- The unique design of the contact core makes it safe and reliable in all environments
- Available solder , PCB and right angle PCB contact
- 360° EMC shielding
- Alignment Key and Polarized Keying System to avoid cross-interface
- Army, Navy, Air Force, Gendarmerie, Ministry of National Defense and Coast Guard
- Midcal equipments like Disposable equipment
- Test & measurement like Data acquisition
- Broadcast, like HD and SD cameras
- Energy, like Renewable energies
- Extreme, such as Sailboat racing
SHENZHEN RAYMO ELECTRONICS TECHNOLOGY LIMITED has been specializing in prcing Electronic Component for many years, providing waterproof connector with superior quality and competitive price. If you are searching for waterproof connector, please feel free to contact us.
| Temperature Range | - 65° C, +200° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 55/175/21 | Shielding (min) | > 95dB [ at 10 MHz], > 80 dB [ at 1 GHz] |
| IP Rating | IP 68 | Endurance(shell) | ≥5000 mating cycles |
If you have ordered this shell connector and know the original model P/N,please tell us.We will directly offer you our correspinding one.
If you don't know much about the connector,please make choose according the following factors:
The use of enviroment,indoor or ourdoors,waterproof or not
The panel hole size, to seclect the approproate plug and socket of right dimension
the current voltage and the realization of the function, to determin the cores
seclect the appropriate clam diameter and sheath
according to the actual needs of different angles of the keys, to determin the keying
-
100% compatible with lemo, , fischer connector
-
Help you save at least 50% cost
-
All the prcts we got CE, ROHS, SGS,ISO9000 certificate
-
Fast delivery: 2-15 working days
-
Cable assembly offer, help you save prction time
- We can provide OEM/ODM service and cable assembly solution
it has excellent compatibility with many leading supplierour company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
-
Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification
Solve the original brand's high cost and long lead time!
