Male Panel Mount Electrical Cord Connectors IP40 Protection Solder Termination
Price:
Negotiable
MOQ:
1 Piece/Pieces
Delivery Time:
5-7working days
Brand:
RAYMO
Product Description

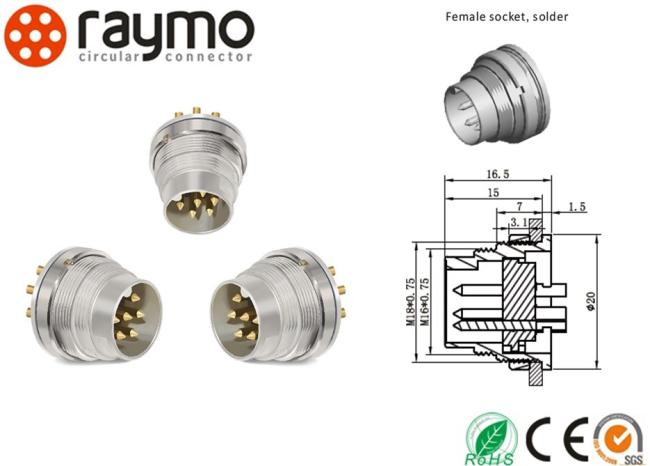

Binder M16 680 Series Threaded Electrical Connector,Male panel mount connector IP40 09 0303 89 02
Binder 09 0303 89 02
- M16 680 Series Threaded Electrical circular connector
- Male panel mount connector, solder, front fastened
- can be 100% compatible with binder 680 series
- RoHS 2.0
Main Features
- Male panel mount connector
- 2 – 12 contacts
- Degree of protection IP40
- Solder termination
- Diameter 4.0-8.0 mm
M16 series connector equivalent as Binder Series 680 678 423, 723 family of connectors are rugged, high-performance circular connectors with excellent EMI shielding . Ideal choice for severe industrial and commercial applications. Panel-mounted receptacle are available in many styles and mounting methods.
Electrical data
| Wire gauge | max, 0.75mm²(max. AWG 20) ( 3-8 poles) |
| max, 025mm²(max. AWG 24) (12 poles ) | |
| Cable outlet | 3-6mm/6-8mm |
| Mechanical opera | >500 ma |
| Upper temperature | + 85 °C |
| Lower temperature | – 40 °C |
| Rated voltage | 250 V (32 V) 2-4 poles |
| 60 V (32 V) 5 poles | |
| 250 V (32 V) 6poles | |
| 125V (32 V) 7poles | |
| 60 V (32 V), 8-12poles | |
| Rated impulse voltage | 1500V 2-6poles |
| 800V 7 poles | |
| 500V (32 V)8-12poles | |
| Rated current (40 °C) | 7A 2-3 poles |
| 6A 4-6 poles | |
| 5A 7-8poles | |
| 3A 12poles | |
| Contact resistance | ≤ 5 MΩ 3-8 poles |
| ≤ 3 mΩ 12poles |
PHOTOS
RAYMO Company Intrce
As manufacturer located in Shenzhen, focusing on manufacturing connectors and cable assemblies serive more than 150 countries since 2010.
Raymo Connectors is committed to working closely with its customers to equip their application with the most appropriate connector and cable system. Our prct range comprises over 3,000 standard items and we are always prepared to develop customized solutions for specific requests.
RAYMO Prcts Applicaiton
- Medical ,Cardiac assist devices
- Test & measurement,Vacuum
- Transport Railways
- Defense & Security
- Broadcast High Speed Camera
- Energy TV and motion picture
- Extreme Target acquisition
Why choose us
- lowe your cost,cheap cable assemble oofer,at least save your 30%-50% cost(100% compatible with original and work well)
- Large stock,short lead time and easy to buy
- We can provide OEM/ODM service and cable assembly solution
- it has excellent compatibility with many leading supplier
- our company has over 9 years experience and strong professional research and development capabilities.Advanced development and management, comprehensice R&D TESTING and highly automatic prction line make our prcts high reliablilyty and high performance.
- Our comapny has passed ISO90001,and got CE, REACH, RoHS and SGS certification
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
