High Precision Raymo Connectors Long Lifespan FNG With Lanyard Release

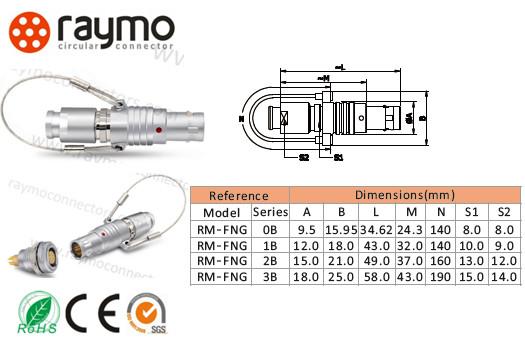

Raymo FNG push-pull 1B connector with lanyard release Circular Push pull connector FNG.1B.302.CLAC52Z
| RAYMO P/N | Lemo P/N |
| RM-FNG-1BC-302-JS52Z | FNG.1B.302.CLAC52Z |
- Multipoles contacts from 2pins to 32 pins
- Circular connectors FNG with lanyard release
- Different shell size from 00B to 4B
| Temperature Range | - 40° C, +125° C | Resistance to vibrations | 15 g [10 Hz - 2000 Hz] |
| Shell Material | Brass with chrome plated | Humidity | up to 95% at 60° C/140F |
| Shock Resistance | 100 g [ 6 ms] | Salt spray corrosion test | >144hr |
| Climatical Category | 50/175/21 | Shielding (min) | > 75 dB [ at 10 MHz], > 40 dB [ at 1 GHz] |
| IP Rating | IP50 | Endurance(shell) | 5000 mating cycles |
- 100% compatible with LEMO FNG
- security of the Push-Pull self-latching system
- multipole types 2 to 32 contacts
- solder/ print contacts (straight or elbow)
- multiple key options to avoid cross mating,such us 30, 45, 60, 90, 135
- high packing density for space savings
- 5000 times push pull
RAYMO is a manufactuer that:
Focus on manufacturing & exporting various metal & plastic circular push pull connectors, cable assembly.
Can be 100% compatible with original LEMO • •FISCHER• HIROSE • BINDER •Industrial 38999
Series has RM-B, RM-K, RM-S, RM-F,RM-E,RM-HR10A, RM-P, RM-M4, RM-M12, RM-M16, BNC, B680,
B423, 38999, 26482
CO, Form A, Form E for customer clearance
CE, ROHS, REACH, ISO:90001-2015, SGS Audited manufacturer
All the items can work normally after 5000times mating
- Medical LIKE Therapy applications
- Test & measurement LIKE Automation
- Transport LIKE Automotive
- Defense & Security LIKE Computers
- Broadcast LIKE High Speed Camera
- Energy LIKE TV and motion picture
- Extreme LIKE Nuclear
| Shell size | Contacts no. (Both with Solder & PCB type) | ||||||||||||||
| RM-00 | 2 | 3 | 4 | ||||||||||||
| RM-0B | 2 | 3 | 4 | 5 | 6 | 7 | 9 | ||||||||
| RM-1B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | ||||
| RM-2B | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 19 | |||
| RM-3B | 3 | 4 | 6 | 8/(6+2) | 9(8+1) | 10 | 12 | 14(13+1) | 14 | 16 | 18 | 21 | 26 | 30 | 32 |
| RM-4B | 7 | 10 | 24 | ||||||||||||
- Sample Free:1-2 PCS
- Fast lead time: 3-5 work days if the QTY is under 200 PCS
- Flexiblity payment way:T/T,PayPal,Westunion,Credit card
- 24 hours service for clients
- Competitive price & stable prction
- Certified CE and RoHS
- OEM/ODM/Cable Assemble
- World-class customer service
1. Are your company a professional manufacturer?
Raymo: Yes, we specialized in prcing circular connectors and cable assembly since 2010.Our factory is SGS audited manufacturer and served global customers for more than 9 years.
2. What is the MOQ?
Raymo: No MOQ limited, small order is accepted, all is depend on customer real needs.
3. Free sample:
Raymo: Available. Any needs, please contact us.
4. What about the delivery time?
Raymo: sample for 3-5 working days, mass prction for 5-7 working days.
5. What is your payment terms?
Raymo: 100% T/T deposit when customer place order.
6. Does your prct have any warranty?
Raymo: Yes, all of our connectors can work normally after 5000 cycles mating; our factory
has instruments to tested them before shipping.
Damage due to misuse, treatment and unauthorized modifications and repairs are not covered by our warranty.
If you couldn't find exact items you want,PLS kindly email us exact models you need, best price & each model specification details will be provided to you soon. Solve the original brand's high cost and long lead time!
