M12 Elbow 8 Pin Miniature Circular Connectors Waterproof Screw Thread Coupling
Description for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
The M8 series provides a wide range of metric M8 connectors for small sensors and actuators. Available in a shielded form and rated to IP67, these connectors are ideally suited for inductrial control networks where small sensors are required. Connectors are either factory TPU over-molded or panel receptacle supplied with a solder-up for wire connecting or with PCB panel solder contacts. A field attachable/mountable connector is also available.
Specification for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
| Prct attribute | Attribute Value |
| Manufacturer | RAYMO |
| Prct name | Circular screw waterproof connectors |
| Connector size | M12 |
| Contact Gender | Pin(Male), pole(female) |
| Number of contacts | 8 contacts |
| Mounting Style | Straight/Elbow |
| Termination Style | Solder/print/PCB |
| Current Rating | 1.5-3A |
| IP Rating | IP67 |
| Application | Sensors, Actuators |
| Shell Material | (1) Connector material: Plastic PA+GF (2) M8 male to female molded cable (3) Contacts:Brass, Gold Plated (4) Cable material: PVC/TPU |
| Wire Gauge | 24-28AWG |
| Certifications | ISO9001/ CE/ ROHS2.0/ SGS |
| Temperature Range | -25°C, +80°C |

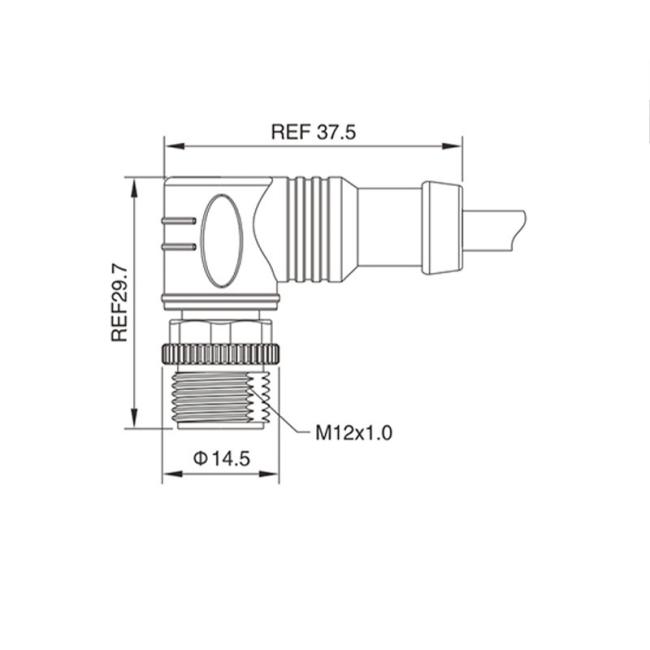

Electrical data & Mechanical data for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
| Contacts | Rated current | Voltage | Wire gauge/size | ||
| A/C | D/C | mm2 | AWG | ||
| 3 pins | 3A | 50V | 60V | 0.25 | 24 |
| 4 pins | 3A | 50V | 60V | 0.25 | 24 |
| 5 pins | 3A | 30V | 30V | 0.25 | 24 |
| 6 pins | 1.5A | 30V | 30V | 0.14 | 26 |
| 8 pins | 1.5A | 30V | 30V | 0.14 | 26 |
Features for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
- Design as per IEC 61076-2-104
- Size can be M5,M8,M12,M16
- Gold-plated ternimals
- Degree of protection IP67
- 3,4,5,6,8 poles are available
- Anti-vibration locking screw design
- TPU over molded ot PA+GF shell
- Perfect O-ring tightened sealing
- Cable length customized, PUR and PVC cable options
Application for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
- Studios and outside broadcasting
- Target acquisition
- Scientific research
- Vacuum
- Sensor & Industrial Automation
- LED lighting & LED display
- Measuring & Testing
Our advantage for m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
- Original manufacturer
- Excellent R&D team
- 10+ years experience
- OEM & ODM acceptable
FAQ
-What is your terms of packing?
A: Generally, we pack our goods in PE bag and brown cartons.
OEM&ODM is available after getting your authorization letters.
-Can you prce according to the samples?
A: Yes, we can prce by your samples or technical drawings. We can build the molds and fixtures.
-Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
m12 connector elbow 8 pin miniature circular waterproof screw thread coupling
