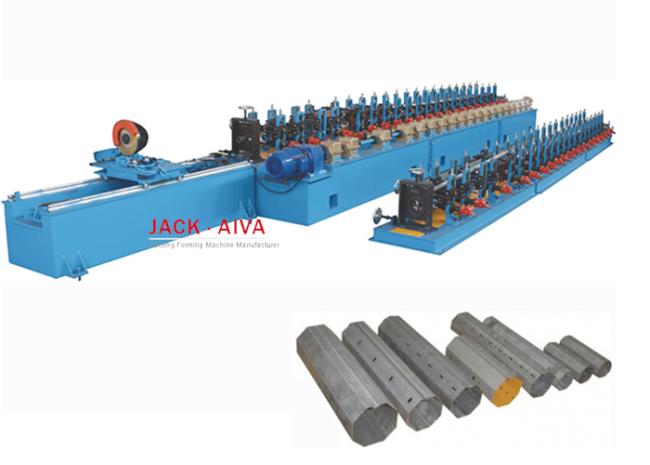

Octagonal Tube Roll Forming Machine 25 Stations Steel Tube Production Line 11kw
Rolling Shutter Octagonal Tube Roll Forming Machine | Steel Tube Production Line
Roll Forming machine for Octagonal Tube of Rolling Shutter Windows
and Doors system
The octagonal rolling tube is for winding up the rolling shutter, made in various shapes. Our mission is to provide excellent custom octagonal rolling tube roll forming machines and tools for professional rolling shutter door and windows installation and quality product at competitive prices, such as Octagonal and round pipe forming machines for Residential tube Machines and Commercial tube Machines.
Rolling shutter Octagonal tube Roll Forming Machine Components

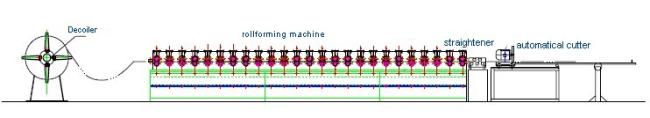

Rolling shutter octagonal tube Roll Forming machine is consisted of de-coiler, material feeding flatting device, punching system, roll forming machine, straightening device, tracing cutter with round saw, run-out table, etc.
Rolling shutter Octagonal tube Roll Forming Machines Main Parameters
| Line structure | Portal-type frame style, HT200 steel |
| Raw Material |
Octagonal Tube 50mm:185mm Octagonal Tube 60mm:215mm Octagonal Tube 80mm:300mm |
| Forming Roller Stations: | Around 25Stations |
| Forming Roller shaft: | φ60mm |
| Forming rollers | GCr15, Quenching, hardness HRC56-62º |
| Forming Speed: | 12 meters / min |
| Main motor: | 11kw, |
| Capacity Length: | up to 9999 mm (optional) |
| Material of Sheet: | Soft Quality (Annealed) Galvanized Sheet |
| Sheet Thickness: | 0.8to 1.2 mm |
| Cutting mode: | Tracing cutting system with round saw or hydraulic cutter is optional. |
| Total Gross Weight: | About 6000kgs |
| Line size (Lx w x h) | 6000 mm×1000 mm×1100 mm |
Rolling shutter Octagon Tube for door and windows related information

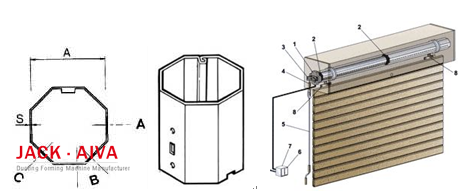

Rolling shutter door & windows Octagonal tube
A=40mm diameter tubes: 0.5-0.6mm thickness;
A=60mm diameter tubes: 0.6-0.8mm thickness;
A=70mm diameter tubes: 1.0-1.2mm thickness;
The up mentioned three tubes, 40mm, 60mm, 70mm are the typical style in the world market. Custom sizes are welcome!
The round shape tube or octagonal tubes can be selected by client.
