Ball Bearing Slides Net Punching Machine

Brief Introduction- Ball bearing Sliders Net Roll Forming Machine

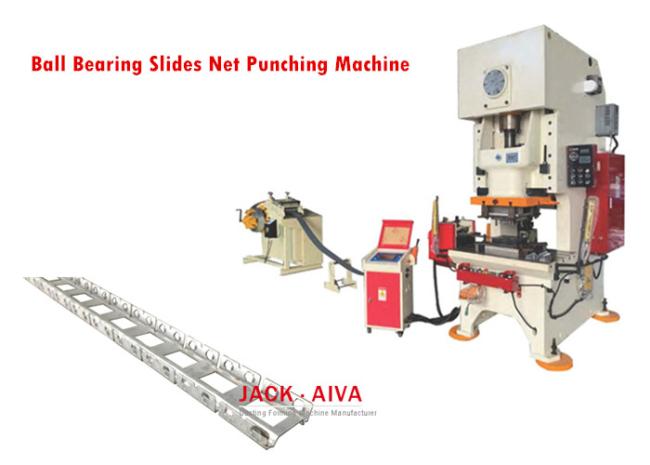

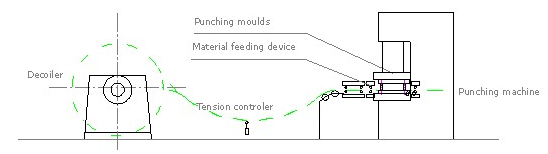

Punching Machine for the manufacture Ball bearing Slides Net. The Ball bearing Sliders Net is one of the part of drawer slides, for supporting the ball bearing. The whole net punching line is consisted of De-coiler, punching machine with net progressive punching moulds, electrical control system, etc.

Main Parameters- Ball Bearing Net Roll Forming Machine

- Raw material: Cold rolled Steel strip

- Thickness: 0.5mm

- Punched profile: ball support net

- Punching: 30T (J23-30)

- Power:: 2.2kw

- Stoke: 90times/min

- Feeder: Servo motor driving; NCF-200

- Weight: 2.5kg

- Production Efficiency: 200 000 PCS per Month

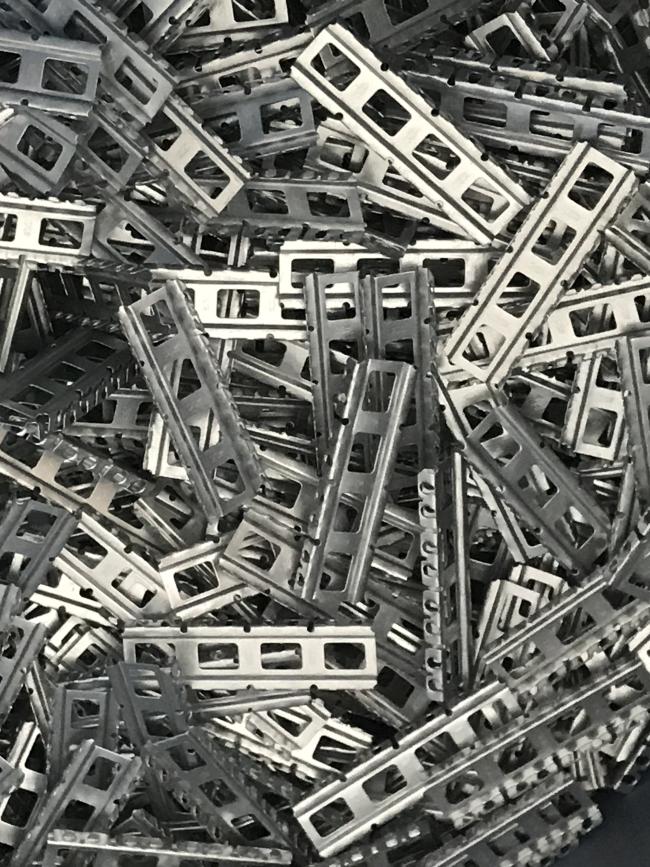

Metal Ball Bearing Net
