Guardrail Fishtail End Pressing Machine

Guardrail fishtail end bending machine technology specification

This is the most popular Road Barrier terminal end used to complete a barrier system. This profile is special designed for the expressway guardrail ends protection. This part is manufactured by hydraulic press machine with ends forming moulds.

This Road Barrier ends equipment is consisted of hydraulic press machine with rail ends bending machine.

Main Parameters

Hydraulic press main parameters

• Capacity: 315KN
• Efficiency: 10 times/min
• Power: 15kw
• Hydraulic cylinder: 250mm
• Movement distance: 150mm
• Frame model: 4 post style

Sizes: length 1500mm x width 1100mm x high 2200mm

Weight: 7500KG

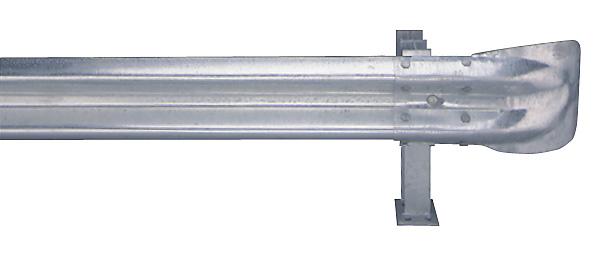

Guardrail Road Barrier Fish Tail Ends Application

Guardrail end treatments provide increased protection for areas with high pedestrian traffic. Rail end treatments are fabricated in-house, and can easily be installed on W-beam galvanized guardrail systems.

The Fishtail End Terminal for expressway guardrail system, we can custom design the roll forming machine according to client request.

Please contact with us for optimized selection and discussion well for you and meet your expectations.
