Slitting line Introduction

Slitting line machine is not only for the steel service cutting industry, but also for the steel pipe industry. Slitting lines are widely used in metal sheet processing industry. Slitting line can do de-coiling, slitting and recoiling works, make coil steel to any needed width coil steel. It mainly includes coil car, un-coiler, coil guide, slitting machine, scrap winder, tension unit, re-coiler and coil car, hydraulic system, Etc. It mainly used in coil or hot rolling carbon steel, silicon steel and all the other kinds of metal materials with surface spreading. This line can be adjusted to do

recoiling or dividing work to meet customer’s demand.

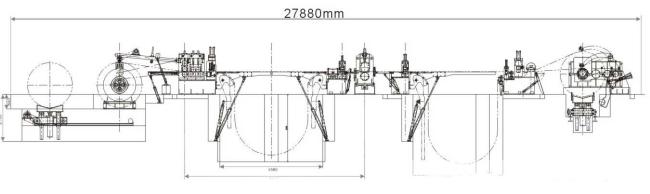

Slitting Line parts

1. Coil car

2. De-coiler

3. Coil guide and pinch roll

4. Slitting machine

5. Scrap winder (both sides)

6. Loop table

7. Separator and tension table

8. Deflector roll and exit threading table

9. Re-coiler

10. Over arm separator in the re-coiler.

11. Exit coil car for re-coiler

12. Hydraulic system

13. Pneumatic system

14. Electrical control system

Slitting Line Main Technical Data
