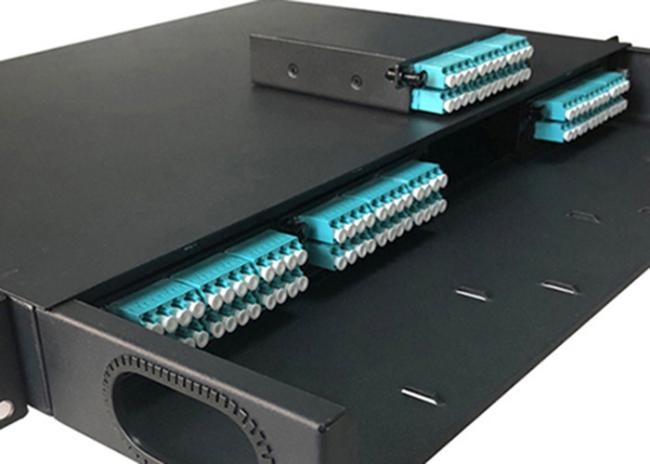

MTP / MPO Fiber Optic Patch Panel High Density 1U 19 Inch 96 Cores
High Density 1U 19 Inch 96 Cores MTP / MPO Fiber Optic Patch Panel
Specification:
|
PRODUCT PARAMETERS OF OPTICAL PATCH PANEL
|
|||
| Name | 1U 96 cores MPO PATCH PANEL | Type | Standrad 1U 19" rack mouted type |
| Model | 6 port quad LC 24 FIBERS | Material | 1.3mm sheet metal |
| Dimension | 485*360*45mm | N.W. | 5.5kgs |
| Color | Black, white optional | Working temperature |
-45℃~80℃ |
| Loading | 4* 24F MPO-LC optcial module. | ||
Description:
This MPO/MTP Fiber optic patch panels provide secure transitions between MPO/MTP and LC discrete connector interface. They are used to interface MPO/MTP backbones with LC patching and active equipment connections.
The Pre-populated panel allows repid deployment of high density data center infrastricture as well as improved trouble shooting and reconfiguration during moves, adds and changes. The shallow depth of the Slim Ultra Panel makes it suitable for copper racking systems.
The MPO/MTP Fiber optic patch panels contain factory controlled and tested MPO/MTP -LC fanouts to deliver optical performance and reliability. Low loss MPO/MTP Elite and LC Premium versions are offered featuring significantly improved low insertion losses for demanding low power budget, high speed networks.
Features:
Fits 19" wide rack units
Reliability - 100% Tested.Factory terminated and tested
Built-in spool for easy cable management
Constructed of high-quality cold rolled steel sheet
1U patch panel capacity comes up to 144F fully loaded , up to 12 MPO/MTP® standard connectors.
Application:
Optical access network (OAN)
Data processing centers/Cable television (CATV)
Local area network (LAN)
Coarse wavelength division
PLC system
FTTH
