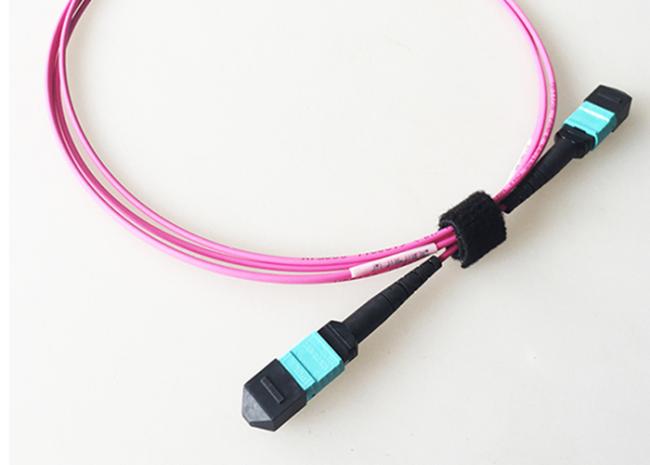

MTP / MPO Fiber Optic Patch Cord OM4 40G Twelve Cores 3MM LSZH Jacket
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 working days
Brand:
Haiyuoptical
Product Description
MTP / MPO Fiber Optic cable Patch Cord OM4 40G 12 Cores 3MM LSZH Jacket
Specification:
| Parameters | Min. | Typical | Max. | Unit. | |
| Operating Wavelength | Single Mode | 1310 | 1620 | nm | |
| Multi-mode | 850 | 1310 | |||
| MPO Insertion Loss | Single Mode | 0.6 | dB | ||
| Single Mode Low Loss | 0.3 | 0.35 | |||
| Multi-mode | 0.75 | ||||
|
Single Fiber Insertion Loss (Fan-out side) |
Single Mode | 0.2 | dB | ||
| Single Mode Low Loss | 0.3 | ||||
| Multi-mode | 0.3 | ||||
| Return Loss | Single Mode | 50 | dB | ||
| Single Mode Low Loss | 60 | ||||
| Multi-mode | 30 | ||||
| Operating Temperature | - 20 | + 70 | °C | ||
Description:
MPO/ multi-fiber cabling system is ideally suited for a high density environment that demands space saving and innovative cable management solutions. MPO fan-out supports various connections from multi-fiber to single-fiber out. We also offer various other MPO products such as MPO cassettes, modules and enclosures. These cassettes provide secure transition between MPO and LC or SC connections.
Features:
- Improves and simplifies fiber routing
- Decreases fiber management space
- OEM or customized for special applications
- Low insertion loss and reflectance
- High Density
- Snap-In cassette panel for easy installation, removal and expansion
Applications:
- Optical fiber communications systems;
- Optical fiber access network;
- Optical fiber CATV.
- Optical fiber test equipments;
- Optical fiber data communications;
- LAN
