50 / 125UM 3M Fiber Patch Cord , Preterminal Outdoor Fiber Patch Cord
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 working days
Brand:
Haiyu Optical
Product Description

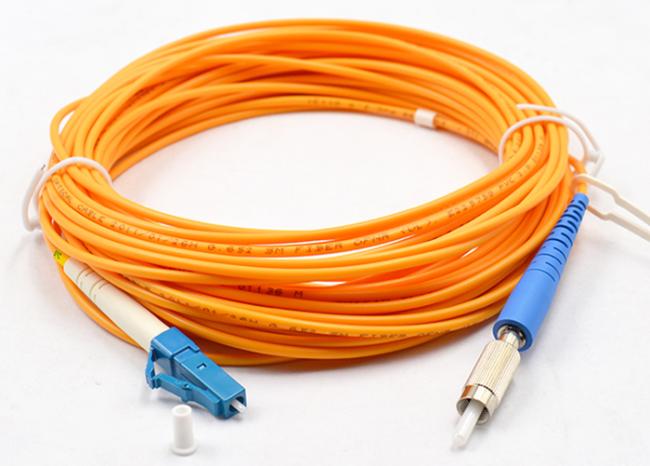

50/125um Multimode Preterminal LC to DIN 3M Fiber Patch Cord
Specification:
| Single-mode | Multimode | |||
| PC | UPC | APC | PC | |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50dB | ≥50dB | ≥60dB | ≥35dB |
| Operating Wavelength | 1310nm, 1550nm | 850nm,1300nm | ||
| Repeatability | ≤0.1dB | |||
| Working Temperature | -40℃~+75℃ | |||
| Service Life | >1000 mating cycles | |||
Description:
The DIN connectors used in our patch cords meet DIN 47256. They are compact and have spring-loaded free floating zirconia ferrules for superior performance.
We provide single mode, multimode, SC, FC, ST, LC, MU, MTRJ, UPC, APC, simplex, duplex, 9/125um, 50/125um, 62.5/125um armored fiber optic patch cord.
Features:
- Improves and simplifies fiber routing
- Decreases fiber management space
- OEM or customized for special applications
- Low insertion loss and reflectance
- High Density
- Snap-In cassette panel for easy installation, removal and expansion
Applications:
- Telecommunication
- Computer networks
- CATV networks
- Active device termination
- Instrumentation
