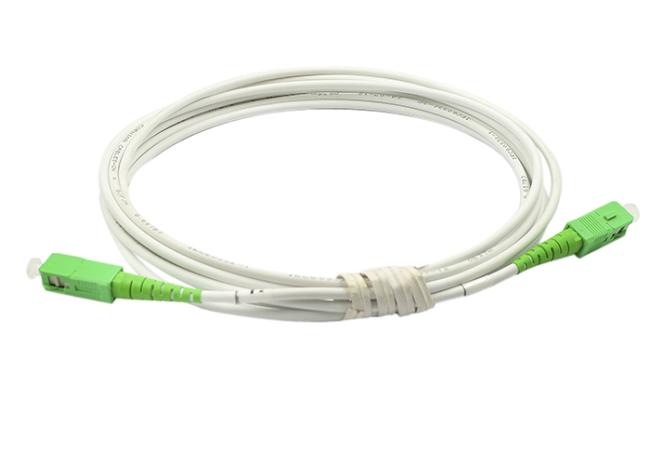

G657B3 Bending Insensitive Single Mode Fiber Patch Cord SC APC Connector
G657B3 Bending Insensitive Fiber Optic Patch Cord SC SC SM SX APC Ferrule
Parameters:
| Connector type | SC/APC |
| Fiber type | SM G657B3 |
| Operation wave length | 1310nm or 1550nm |
| Insertion loss | ≤0.3db |
| Return wave loss | ≥60db |
| Mechanical testing |
Vibration:10-55hz,0.75mm single amplitude,30min each direction Drop test Drop highth:1m, fiber longth:1m, drop time:5 times Durability 1000 times Anti-pull power :90N |
| Storage temperature | -40-+80°c |
| Operation temperature |
-40-+80°c |
Superior to standard ITU-T G.657.B3 fibre, bending radius down to as small as 5mm and full compatibility with all G.652.D fibres
Features:
1.Using high precision ceramic ferrule
2.rubbing exactitude and testing completelly
3. low insertion loss and high return loss
4. high stability and repeat
5.be according with the telcordia GR-326-CORE standard
6.ferrule:excellent quality and high intensity zirconium dioxide ceramic ferrule
Product application:
1. Local Area Network
2.Data communication network
3.Telecommunication optical transmission network
4.Optical access network(OAN)
5.Active device termination
