GYTA / GYTS Outdoor Fiber Optic Cable , Multi Strand Aerial Fiber Optic Cable
Price:
Negotiable
MOQ:
1km
Delivery Time:
3-5 working days
Brand:
Haiyu Optical
Product Description

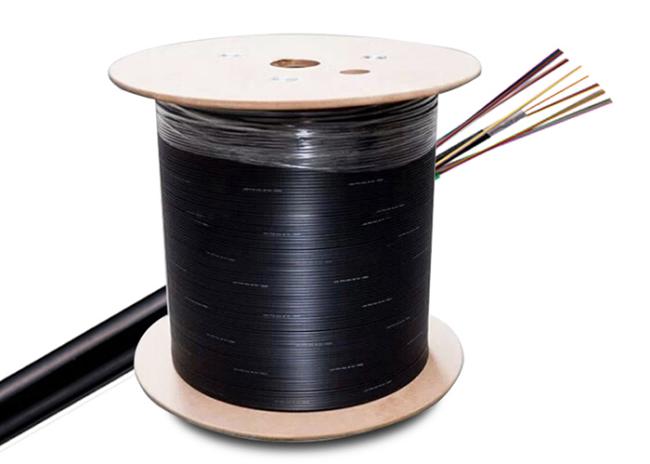

GYTA / GYTS Outdoor Single Mode Fiber Optic Cable for laying in Aerial and Duct
Description:
This GYTA / GYTS Stranded Loose Tube Cable has good Merchanical and temperature performance, good crush resistance, water blocking and flexibility. It is recommended laying in aerial and duct, apply for long distance communication and LAN.
Specification:
| Technical Parameters: | |||||||||
| Cable Count | Out sheath Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
|||
| (MM) | (KG) | short term | long term | short term | long term | Dynamic | Static | (℃) | |
| 2~30 | 9.8 | 115.00 | 1500 | 600 | 1000 | 300 | 20D | 10D | -40+60 |
| 32~36 | 10.6 | 140.00 | |||||||
| 38~60 | 11.0 | 140.00 | |||||||
| 62~72 | 11.6 | 165.00 | |||||||
| 74~96 | 13.2 | 205.00 | |||||||
| 98~120 | 14.7 | 245.00 | |||||||
| 122~144 | 16.1 | 285.00 | |||||||
| 146~216 | 16.6 | 300.00 | |||||||
| 218~240 | 19.8 | 395.00 | |||||||
| 242~288 | 22.0 | 470.00 | |||||||
Features:
- Armored steel tape providing maximum anti-crush proberty.
- Bullet resistant performance.
Application:
- Adopted to Outdoor distribution.
- Suitable for aerial and duct.
- Long distance and local area network communication (LAN).
Package:
