ST LC SC FC Multimode Fiber Patch Cord 1 / 2 / 5M Length -40 - 75℃ Operating
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 working days
Brand:
Haiyuoptical
Product Description

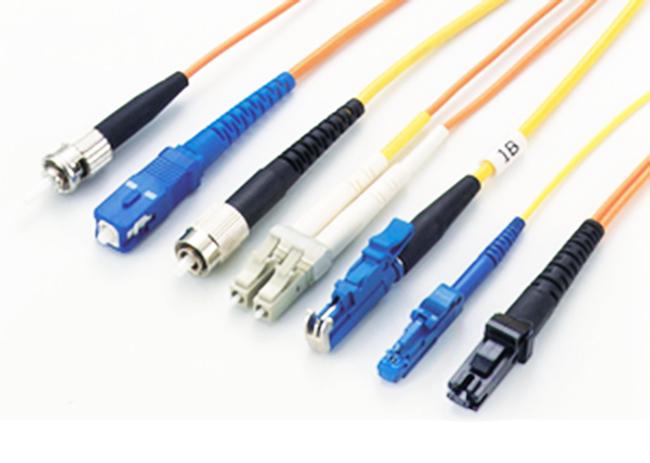

Pre-terminated ST LC SC FC Optical Multimode Fiber Patch Cord
Specification:
| Single-mode | Multimode | |||
| PC | UPC | APC | PC | |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.2dB | ≤0.2dB |
| Return Loss | ≥50dB | ≥50dB | ≥60dB | ≥35dB |
| Operating Wavelength | 1310nm, 1550nm | 850nm,1300nm | ||
| Repeatability | ≤0.1dB | |||
| Working Temperature | -40℃~+75℃ | |||
| Service Life | >1000 mating cycles | |||
Description:
Fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment.
Fiber optic patch cord is available in both single mode and multimode versions.
The connector has a zirconia ceramic ferrule with pre-polished PC profile and convex spherical end.
These end-face types allow for faster polishing, and low back reflection and optical loss, while ensuring maximum repeatability.
Features:
- Low insertion loss and back reflection loss
- Ferrule end surface pre-domed
- Excellent mechanical endurance
- Good in repeatability
- Good in exchange
Applications:
- Telecommunication
- Computer networks
- CATV networks
- Active device termination
- Instrumentation
