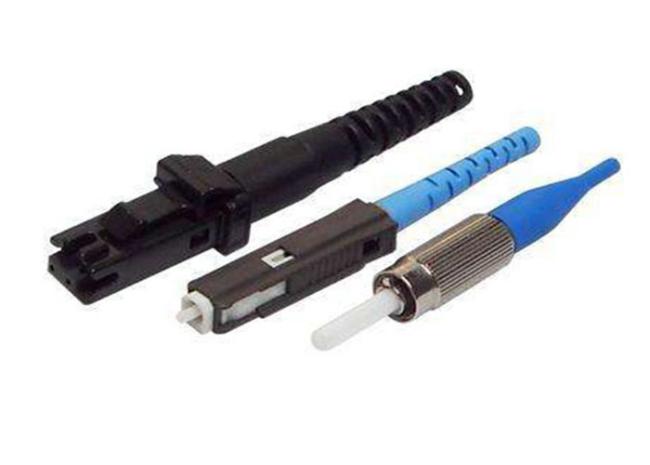

MTRJ Fiber Optic Connector

MT-RJ stands for Mechanical Transfer Registered Jack. MT-RJ is a fiber-optic cable connector that is very popular for small form factor devices due to its small size. Housing two fibers and mating together with locating pins on the plug, the MT-RJ comes from the MT connector, which can contain up to 12 fibers.

Specification:

Features:

1) 100% optic test: Insertion Loss: ≤0.2 (PC)

2) 100% optic test: Return Loss: ≥45 (PC); ≥60 (APC); ≥55 (UPC); ≥50 (SPC);

3) Good exchange ability and good durability;

4) Meets ISO9001, ROHS and Bell core GR 326-core standards;

Product application:

1) CATV, metro Test equipment

2) Telecommunication networks;

3) Local area networks (LAN);

4) Wide area networks (WAN);

5) Premise installations;

6) Data processing networks;

7) Video and military active device termination.
