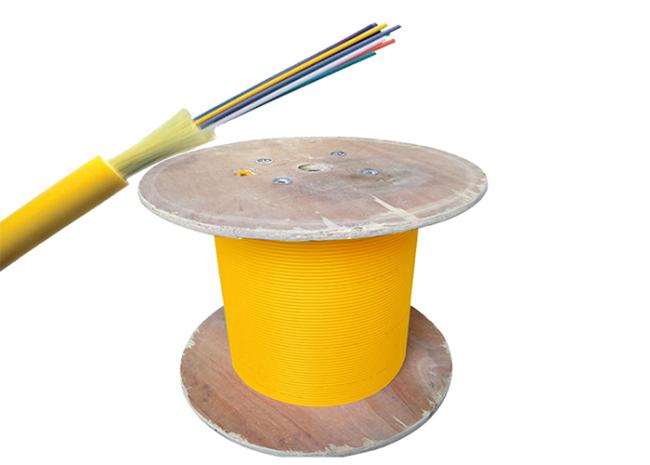

Bunchy Indoor Fiber Optic Cable , High Performance Multicore Fiber Optic Cable
Single Mode Multi Core Bunchy Fiber Optic Indoor Cable
Description:
Haiyu Optical's Indoor Tight Buffered No-metallic Distribution Cable has excellent characteristics, content with different indoor requirements, including building, lift well, FTTD, etc. It can supply bandwidth, transmission speech, data, TV and image. It has small diameter, light weight and flexibility. It is easy to installation, mainteance and manage.
| Technical Parameters: | |||||||||||
| Cable Count | Outside Diameter |
Tight buffer Diameter |
Weight | Minimum allowable Tensile Strength (N) |
minimum allowable Crush Load (N/100mm) |
Minimum Bending Radius (MM) |
Storage temperature |
||||
| (MM) | (MM) | (KG) | short term | long term | short term | long term | short term | long term | (℃) | ||
| 04 | 5.2 | 0.9 | 24.00 | 600 | 200 | 1000 | 300 | 20D | 10D | -20+60 | |
| 06 | 5.5 | 0.9 | 27.00 | 600 | 200 | 1000 | 300 | 20D | 10D | -20+60 | |
| 08 | 6.2 | 0.9 | 32.00 | 600 | 200 | 1000 | 300 | 20D | 10D | -20+60 | |
| 12 | 6.5 | 0.9 | 36.00 | 600 | 200 | 1000 | 300 | 20D | 10D | -20+60 | |
Features:
2~12 tight buffered fibers,
Small cable diameter and small bending radius,
Multi-cores, light weght,
Suitable for most types of connectors SC, LC, FC, ST, MU, DIN, MPO etc.
Application:
Horizontal and vertical cabling inside buildings,
Muiti-core Patch cords
transmission equipment
Package:
