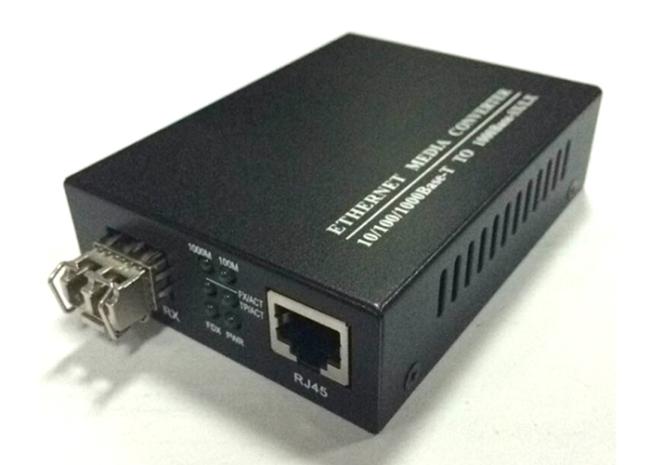

100M Rate Black Box Media Converter , SFP Port Single Mode Fiber Converter
100M 20KM Single Mode SFP Dual Fibre Optic Media Converter
Product Description:
10/100M SFP Optical Media Converter, also called Ethernet to fiber Converter or copper to fiber converter, supports two types media for network connection such as 10/100Base-TX and 100Base-FX. The media converter is designed with a switch controller and buffer memory that connects two types segments to operate smoothly, the flexible SFP slot design makes it easy for users to use different SFP modules according to their needs. With internal or external power unit, it provides good stability and reliability.
The HD-1201-SFP can be put in 14-slot rack chassis for centralized management.
Specification:
| Parameter | Specifications |
| Standard | IEEE 802.3/802.3u 10/100Base-TX; 100Base-FX |
| Optical interface | LC |
| Wavelength | 850nm/1310nm/1550nm(Option) |
| Ethernet connector | One RJ45 connector, connected to STP/UTP category-5 twisted pair One SFP Port |
| UTP Cable | Cat. 5 cable up to 100m |
| Data Transfer Rate | 200Mbps for full-duplex at 100Mbps speed |
| TP Flow Control | N Way auto-negotiation |
| Fiber Flow Control | N Way at full-duplex mode |
| General characteristics | |
| Power Requirement |
220V(175-260V)AC, 50Hz DC:48VDC |
| Operation temperature | -10°C – 55° C |
| Operating humidity | 5%~90% |
| Storage temperature | -40°C - 70° C |
| Humidity | 5% - 90% non-condensing |
| Dimensions | 26mm (H) * 70mm (W) * 94 mm (D) (external power supply) |
Features:
² Standards: IEEE 802.3/802.3u 10/100Base-TX; 100Base-FX
² High performance data transmission
² Wide dynamic range of IP data packet
² Comprehensive LED support
² Standard Single mode fiber, transmission distance up to 120Km
² One RJ45 100Base-TX ports&one SFP slot
² Auto Half/Full Duplex data mode
² Auto MDI/MDIX provides automatic cross
² CE,FCC,ROHS compliant
² 3-year warranty

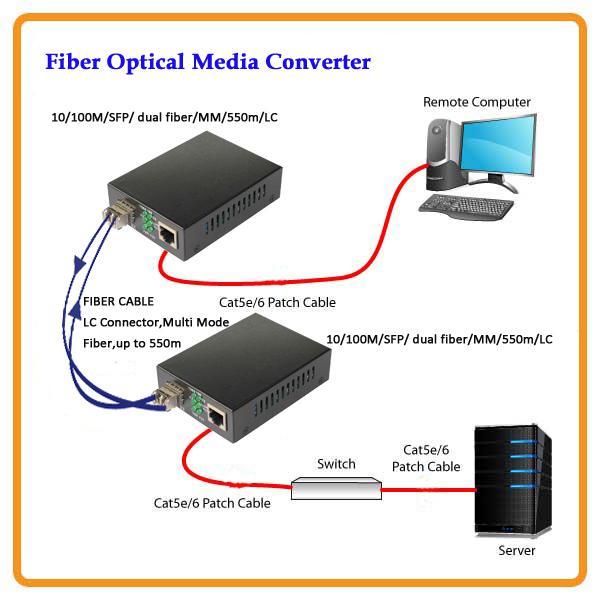

Application:
