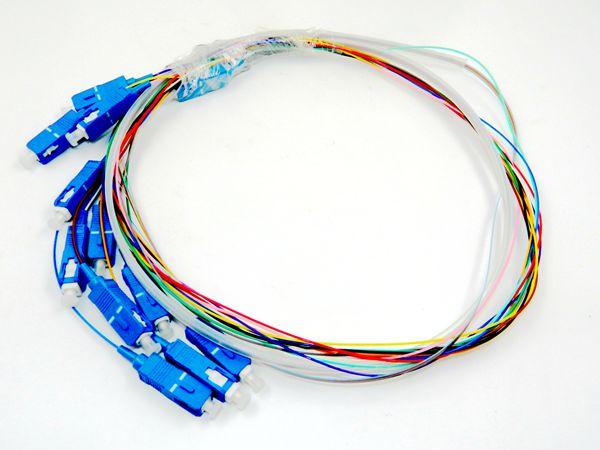

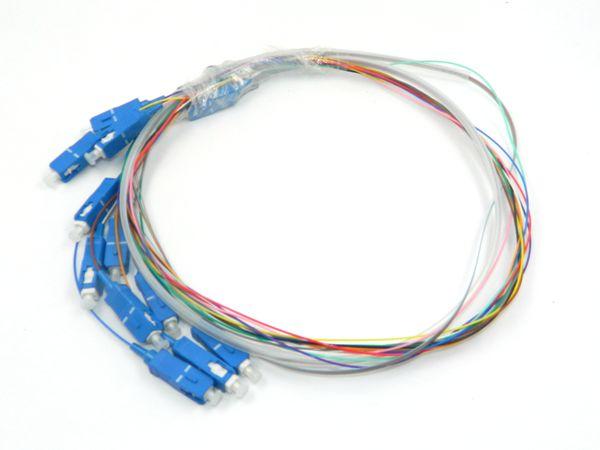

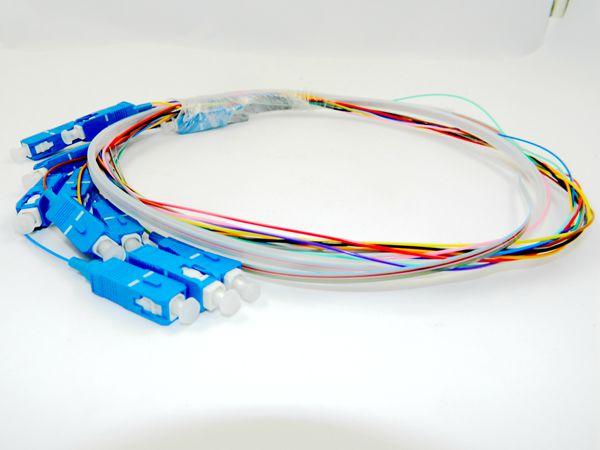

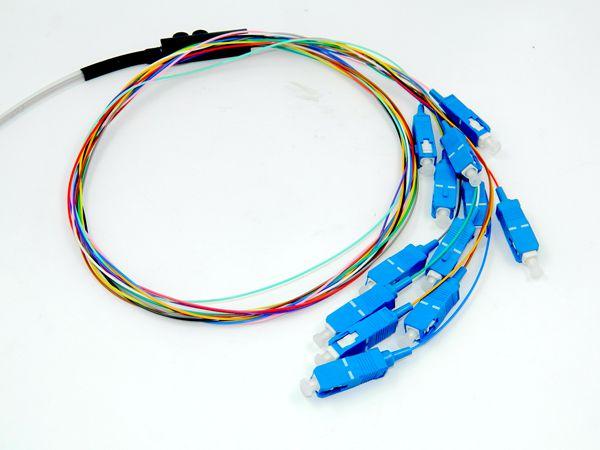

1310nm 1510nm SC UPC 12 Fiber 900um Optic Fiber Pigtail

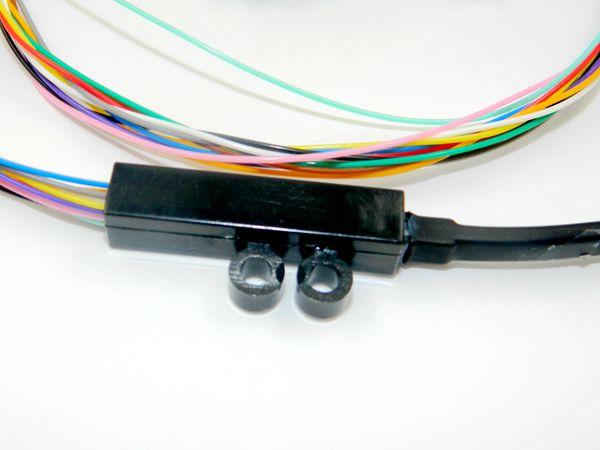

SC UPC 12 Fiber 900um Buffer Tupe Fanout Optic Fiber Pigtail
1.Low insertion loss
2.Professional manufacturer
3.OEM and ODM
4.Competitive price but good quality.
12 core fiber optic pigtail feature:
Type: FC,SC,ST,SC,LC,MU,MTRJ,D4 and Metal Ferrule Fiber optic Patchcord and Pigtail
PC or 8 degree APC and Metal Ferrule
Single Mode and Multimode
Cable 0.9mm,2.0mm,2.4mm,3.0mm with simplex or duplex and 4,6,8,12,24,48 cores
Custom order Length*Cable color green, yellow and orange
All parts compliant with ROHS*IEC standard compatible
GR-326-CORE Compliant
|
parameter |
unit |
Ribbon multi-fiber connector |
||||||
|
SM |
MM |
|||||||
|
PC |
UPC |
APC |
PC |
|||||
|
Insertion Loss (Typical) |
dB |
<=0.3 |
<=0.3 |
<=0.3 |
<=0.3 |
|||
|
Return Loss |
dB |
>=45 |
>=50 |
>=60 |
>=20 |
|||
|
Wavelength |
nm |
|
850,1310 |
|||||
|
Exchangeability |
dB |
<=0.2 |
||||||
|
Vibration |
dB |
<=0.2 |
||||||
|
Operating Temperature |
oC |
-40~80 |
||||||
|
Storage Temperature |
oC |
-40~80 |
||||||
|
Cord diameter |
mm |
2.0, 0.9 |
||||||
|
Fiber Count |
F |
4, 6, 8, 12,24fiber |
||||||
|
Connector Available |
|
FC, SC, ST, LC, MU |
||||||
OEM & ODM is accepted, any questions welcome to contact us.
