SM MM OM1 OM2 OM3 OM4 OM5 Fiber Optic Patch Cord Types

Applied range

1 Optical fiber communication system

2 Optical access network

3 Optic-fiber Date Communication

4 Optical-fiber CATV

5 A local area network (LAN)

6 Test Equipment

Order informations

HYG-ST/ PC – ST/ PC/ SM/ 2C/ 3.0 – 1M

          1     2      1     2     3      4     5        6

1 Connector types:  FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA

2 Ferrule End-face: PC, APC

3 Fiber Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)

4 Cable Quantity: “2C” means duplex,C means simple

5 Cable Diameter: 3.0mm, 2.0mm, 0.9mm

6 Length:1, 2, 3 meter or customized length

7 Cable type: PVC, LSZH, OM3, OFNR, OFNP, Plenum

Technical parameters

1 The min bending radius: 3.8 cm

2 Operating temperature range: - 40 ~ 85 °C

3 connector materials: ceramic plug core

4 Min bandwidth: 200 MHZ. Km / 850 nm, 500 MHZ. Km / 1300 nm

5 Repeat plug: < 0.2 dB, each 500 times plug

6 Min reflection loss: 20 db

7 Max return loss:-50dB

Environmental Reliability Test

The performance of the patchcords has been carefully designed to meet the IEC standards, GR-326-CORE, in the test of optical characteristics, vibration test, thermal cycling, impact resistance, salt spray erosion, thermal aging, humidity resistance and others

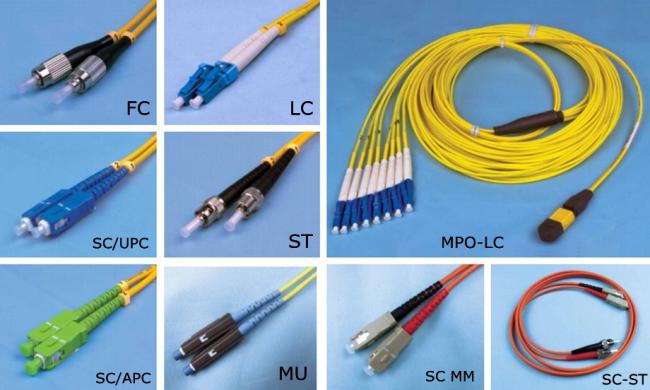

 Full types of fiber optic  patch cords:
