LSZH 1650nm 1x18 1x32 APC/UPC Fiber Optical Splitter
PLC (Planar Lightwave Circuit) splitters is used for fiber optic signal splitting in PON networks: The compact size
makes them suitable for installation in splice trays and placed in joint closures, cabinets or optical termination panels
The PLC splitters are available with one or two input ports and up to 64 output ports.
1*8 optical splitter:
1.SM&MM plc splitter
2.Low insertion loss and low PDL
3.High reliability and channel
1*8 optical splitter application:
LAN, WAN and Metro Networks
FTTH project & FTTX Deployments
CATV System
GPON, EPON
Fiber Optic Test Equipment
Data-base Transmit Broadband Net
|
1*8 optical splitter technical specifications |
|||||||||
|
Wavelength(nm) |
1260-1650 |
||||||||
|
Parameters |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
2×4 |
2×8 |
2×16 |
2×32 |
|
Insertion Loss(with connector)(dB) |
≤7.4 |
≤10.7 |
≤13.7 |
≤16.9 |
≤21 |
≤7.8 |
≤11.5 |
≤14.5 |
≤17.7 |
|
Insertion Loss(W/O connector)(dB) |
≤7.7 |
≤11.2 |
≤14.2 |
≤17.5 |
≤21.5 |
≤8.3 |
≤12 |
≤15 |
≤18.2 |
|
Uniformity (dB) |
≤0.8 |
≤1.0 |
≤1.4 |
≤1.9 |
≤2.7 |
≤1.7 |
≤1.7 |
≤2.2 |
≤2.7 |
|
PDL(dB) |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.3 |
≤0.4 |
≤0.2 |
≤0.4 |
≤0.4 |
≤0.4 |
|
Size(bare bype) (H×W×L)(mm) |
4×4×50 |
4×7×50 |
4×12×60 |
4×4×50 |
4×7×50 |
||||
|
Return Loss(dB) |
>50 |
||||||||
|
Directivity(dB) |
>55 |
||||||||
|
Temperature Range(°C) |
-40~+75 |
||||||||
|
Storage Temperature(°C) |
-40~+85 |
||||||||

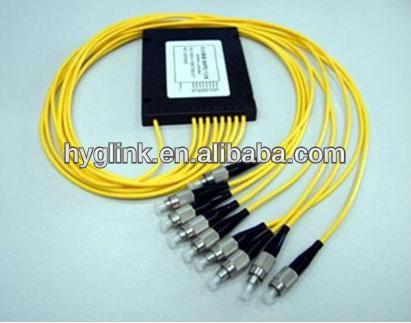

1*8 optical splitter pictures:
OEM & ODM is accepted, any questions welcome to contact us.
