Customized Ferrule 125um 800um SM/MM Fiber Optic SMA Connector
Price:
Negotiable / Piece
MOQ:
10 Piece/Pieces
Delivery Time:
3-7 working days
Brand:
HYG
Product Description
Customized Ferrule 125um up to 800um SM/MM Fiber Optic SMA Connector
Product Description
The 905 and 906 series were the first fiber optic interconnectsystem to gain industry wide acceptance for military, industrial, data communications and medical appli- cations. The SMA connector family utilizes a threaded coupling nut system for mating and de-mating. Available with zirconia or stainless steel ferrules with custom hole sizes, the SMA is an excellent choice for a robust, low-cost and reliable system.
Features:
- Reliable, robust and time-tested as one of the first industry standard fiber optic interfaces.
- Threaded, metal coupling nut for maximum retention.
- Stainless steel ferrules available in custom, precision drilled fiber holes for specialized applications.
- Available with hexagonal coupling nut upon request.
Specifications:
| 128µm & 144µm SMArt ferrule (zirconia, 905 series): | 128µm & 144µm stainless steel ferrule: | |
| Inser tion Loss: | < 0.8dB typical | < 2.0dB typical |
Tolerances for custom, micro-drilled holes for stainless steel ferrules:
| Fiber Hole Size | Tolerance |
| 128 & 144µm | +5 / -0µm |
| 145 to 200µm | +10 / -0µm |
| 201 to 500µm | +5%/-0µm |
| 500µm and higher | +25 / -0µm |
Storage/Operating Temperature: -40°C to +70°C

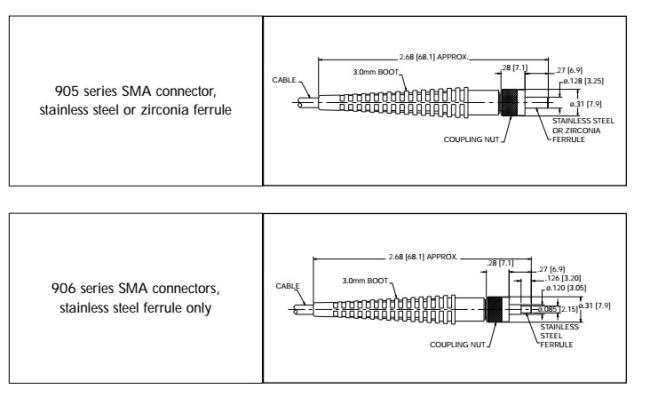

Drawing:

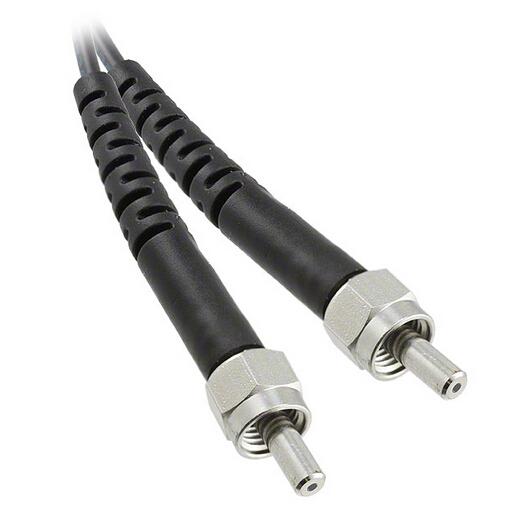

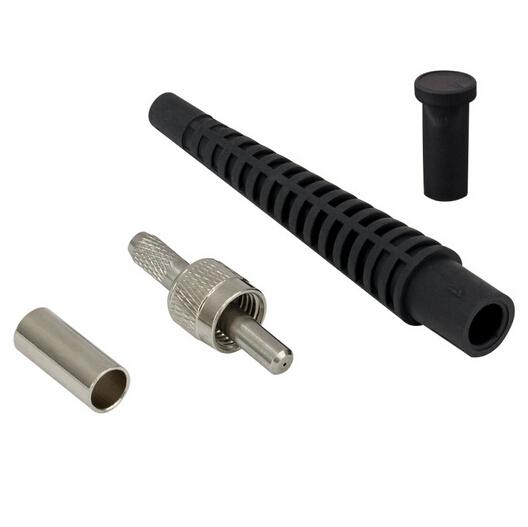

Picture:
