1.5AMP 10 Pin RJ45 RJ48 UTP Optical Patch Cord 50u Gold Plated

Price Negotiable

Price: $0.06 - $0.09 / Piece

MOQ: 100 Piece/Pieces

Delivery Time: Negotiable

Brand: HYG

Product Description

RJ45 Connector

Quick Details:

Place of Origin: Guangdong China (Mainland)	Brand Name: HYG or OEM	Model Number: HYG-TA002
Type: RJ45	Application: Networking	Gender: male
COLOR: White or grey	Pin: different pins available	Gold-Plate: as demand
Certificate:CE,ISO9001,ROHS	Housing: PC

Packaging & Delivery:

Packaging Detail:	export standard carton
Delivery Detail	within 10-15 days

Electrical:

Current Rating: 1.5AMP

Voltage Rating:12.5VAC

Insulation Resistance:500MΩ Min

With Standing Voltage:AC1000V RMS 50HZ or 60HZ 1 Min

Contact Resistance:20Ω Max

Mechanical :

Cable to Plug Tensil Strength:7.7 Kg Min

Durabilty:750 Mating Cycles Min

Material :

1.Housing:Polycarbonate(PC) UL 94-0 or UL 94V-2

2.Contact:Phosphor Bronze.Hard Plated Over Nickel Shielding:0.25mm thickness copper alloy with tin plated.

3.Working Temperature:-40°c to 70 °c°.

When order RJ45 plug/ cat5e connector/cat6 plug pls mark gold plating :3U INCH,6U INCH,15U INCH,30U INCH,50U INCH.

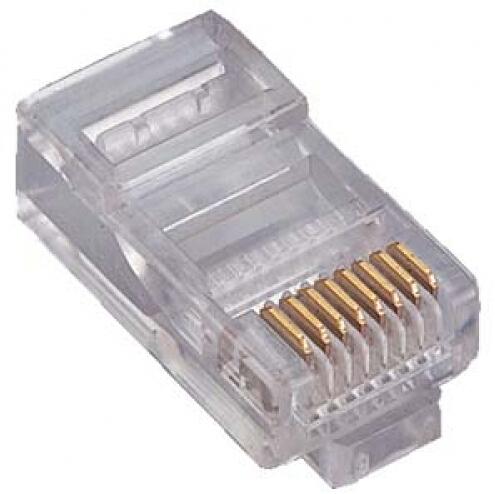

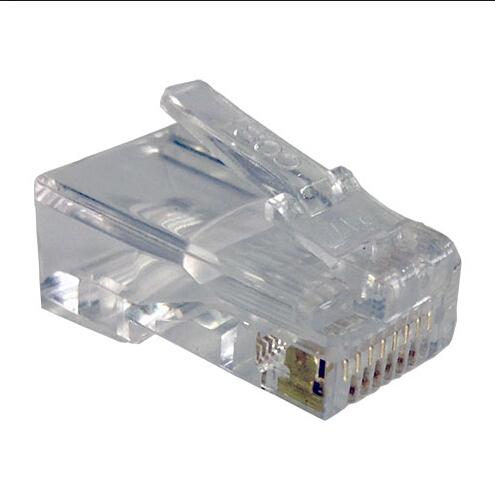

RJ45 UTP male Connector Images:
