12 Cores OS1 Singlemode MPO Patch Cord Female Male Pin G657A1
Price:
Negotiable
MOQ:
1
Delivery Time:
2-3 working days
Brand:
Haiyu Optical
Product Description
Customized Female or Male pin 12 cores OS1 Singlemode MPO Fiber Optic Patch Cord
Description of Singlemode MPO Fiber Optic Patch Cord:
The Singlemode MPO fiber optic patch cord is assembled with MPO female or male connectors. The MPO connector uses a spring-loaded sliding mechanism allowing the fiber patch cord to latch onto adapters providing a secure and reliable connection for network cabling in enterprise data centers, backbone, colocation facilities, server farms, cloud storage networks, and telecommunication rooms. Each assembly is 100% factory tested to meet Bellcore GR-326 and TIA standard with maximum insertion loss of less than 0.35dB, 0.2dB is typical.
Specification of MPO Fiber Optic Patch Cord:
| Fiber type | 9/125 OS2 Single-mode | Fiber connector | MPO Female or male |
| Return loss | SM>50dB | Insertion loss | SM(G657A1)<0.35dB |
| Tensile Resistance | 15kgf | Insert-pull test | 50times |
| Jacket material | LSZH or PVC or plenum | ||
| Operation temperature | -40 to 85°C | ||
Features of Singlemode MPO Fiber Optic Patch Cord:
- Improves and simplifies fiber routing
- Decreases fiber management space
- Low insertion loss and reflectance
- High Density
Applicationsof Singlemode MPO Fiber Optic Patch Cord:
1,Optical fiber communications systems;
2,Optical fiber access network;
3,Optical fiber CATV.
4,Optical fiber test equipments;

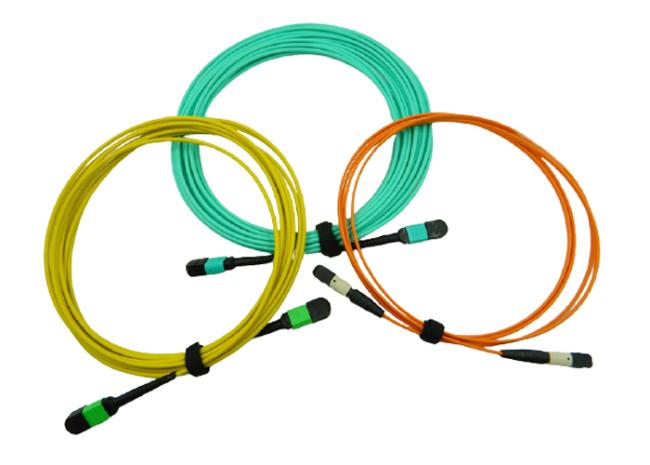

Pictures of other MPO Fiber Optic Patch Cord:
Bare Fiber Color of Singlemode MPO Fiber Optic Patch Cord:
| No. | 4 Ribbon Fiber | No. | 8 Ribbon Fiber | No. | 12 Ribbon Fiber |
| 1 | Blue | 1 | Blue | 1 | Blue |
| 2 | Orange | 2 | Orange | 2 | Orange |
| 3 | Green | 3 | Green | 3 | Green |
| 4 | Brown | 4 | Brown | 4 | Brown |
| 5 | Gray | 5 | Gray | ||
| 6 | White | 6 | White | ||
| 7 | Red | 7 | Red | ||
| 8 | Black | 8 | Black | ||
| 9 | Yellow | ||||
| 10 | Violet | ||||
| 11 | Pink | ||||
| 12 | Aqua |
